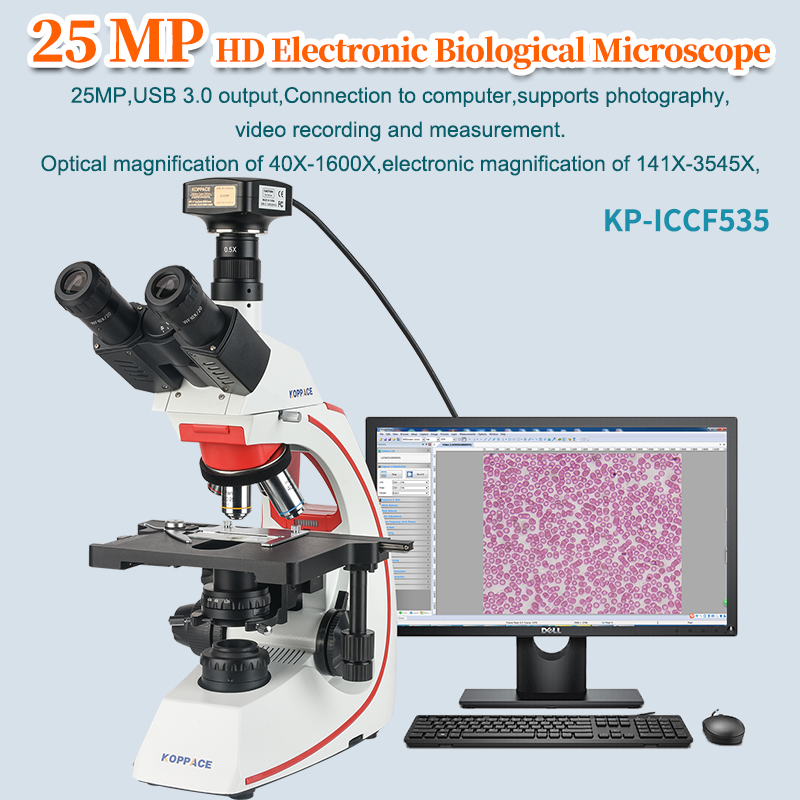

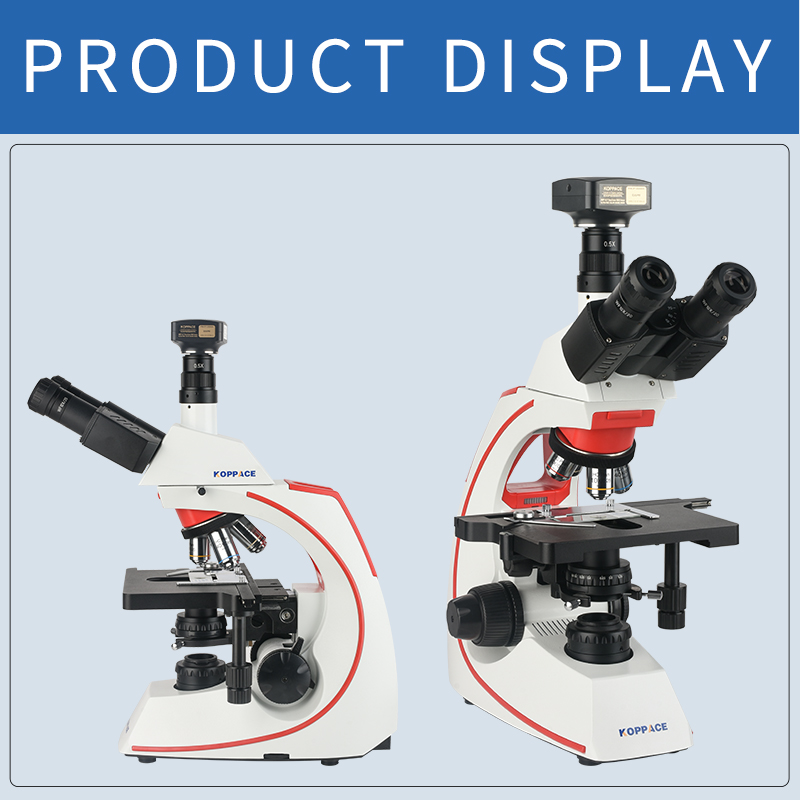

| Model | KP-ICCF535 |
| Optical Magnification | 40X-1600X |
| Electronic Amplification | 141X-3545X |

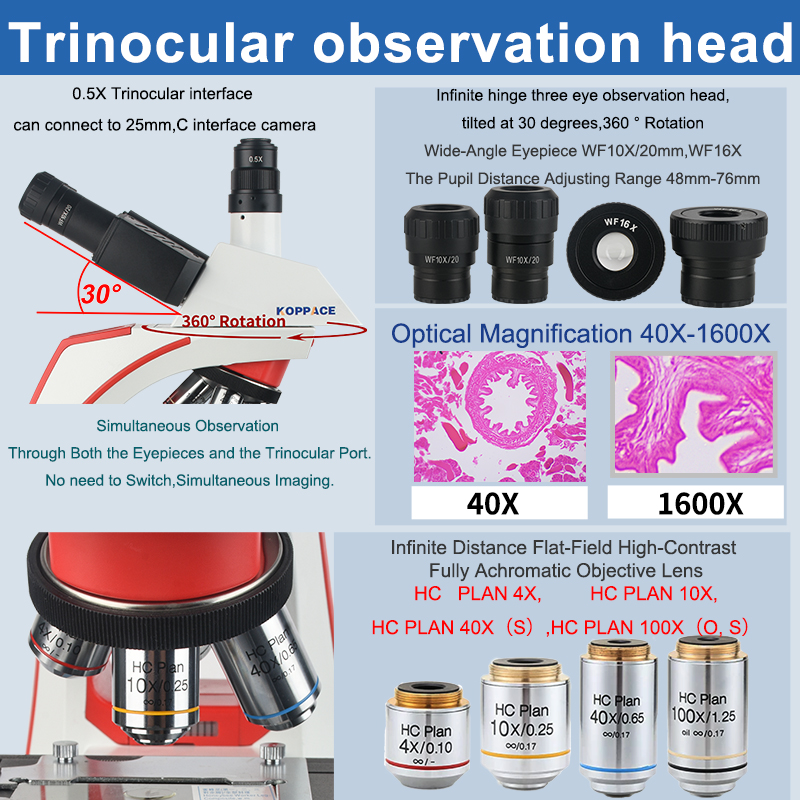

| Observation Tube | Infinity hinged trinoculars: 30 °tilt,360 °Rotatable interpupillary distance: 48-76mm （Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.） |
| Eyepiece | High eye point,wide Angle WF10X/20mm,WF16X/16mm,adjustable vision. |
| Objective Lens | Infinite Distance Flat-Field High-Contrast Fully Achromatic Objective Lens HC PLAN 4X, HC PLAN 10X, HC PLAN 40X(S)), HC PLAN 100X(O, S) |
| Converter | Four holes inclined,steel ball positioning |

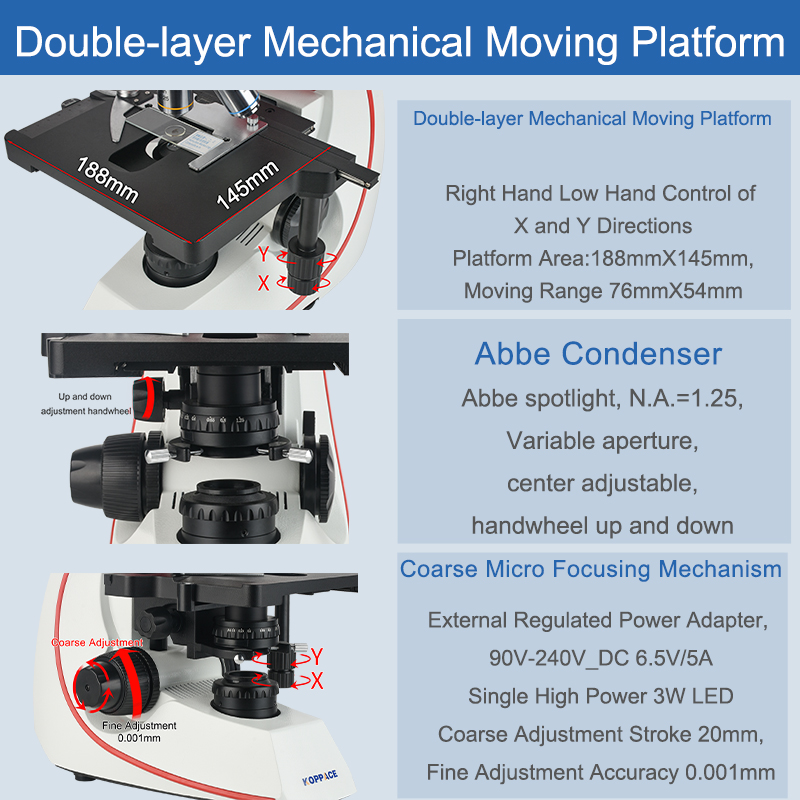

| Operating Platform | Double layer Mechanical Moving platform,Triangular steel Column guide rail up and down,area:188mmX145mm,Moving range:76mmX54mm |
| Coarse Micro Focusing Mechanism | Coaxial roughing and fine-tuning,with hand wheel tightening adjustment and limit device,coarse-tuning 20mm,fine-tuning accuracy 0.001mm |
| Condenser | Full Kela abbe convergent lens,N.A=1.25, up and down,adjustable center,variable diaphragm |
| Light Source | LED cold light source,3W,precision stepless dimming,no flicker |
| Power | External switch stabilized power supply,input ac90-240v,output DC 6.5V/5A |
| Trinocular Interface | 0.5X |

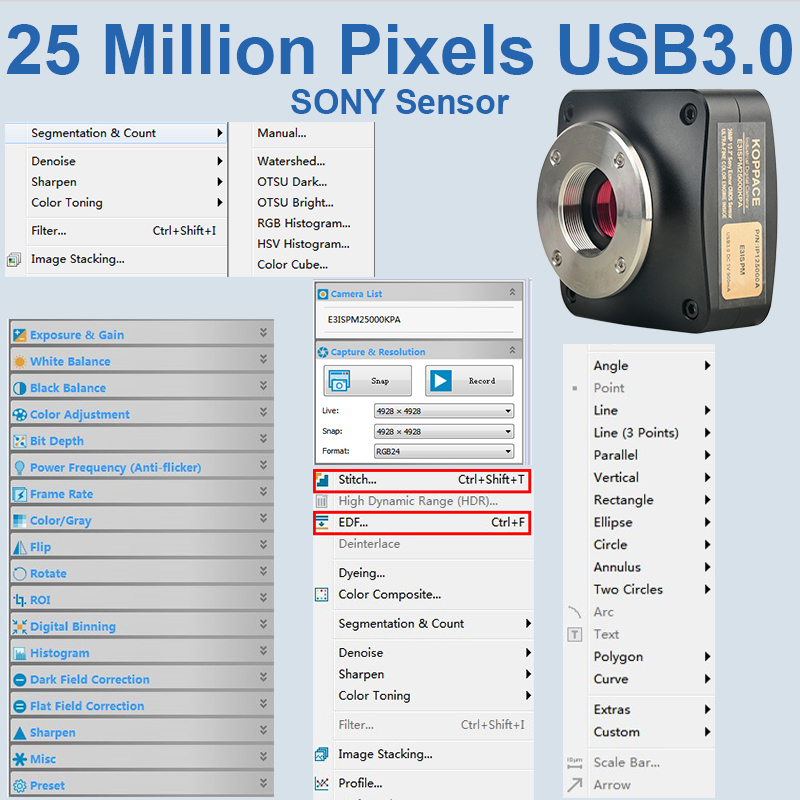

| Pixel | 25 Million Pixels |
| Output Method | USB3.0 |
| Sensor | 25M/SONY IMX511(C) |
| Sensor Size | 1/2.3" (5.519x5.519) |
| Resolution Frame Rate | 12@4928x4928，46@2464x2464，100@1648x1648 |
| Pixel Size | 1.12μmx1.12μm |
| Exposure Time | 0.013ms~15s |
| Exposure | Auto/Manual |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
| Shooting Mode | Images and Videos |
| Operating System | Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux |
| File Save | Can Set File Name,Save Pictures With Time Format,Save Path Selection |
| Image Adjustment | Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function. |

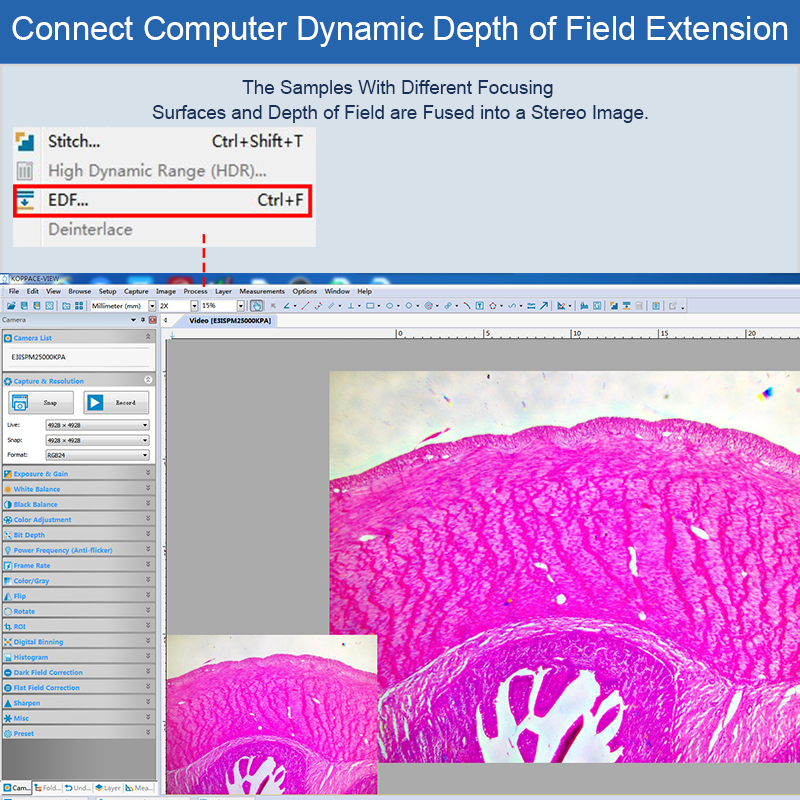

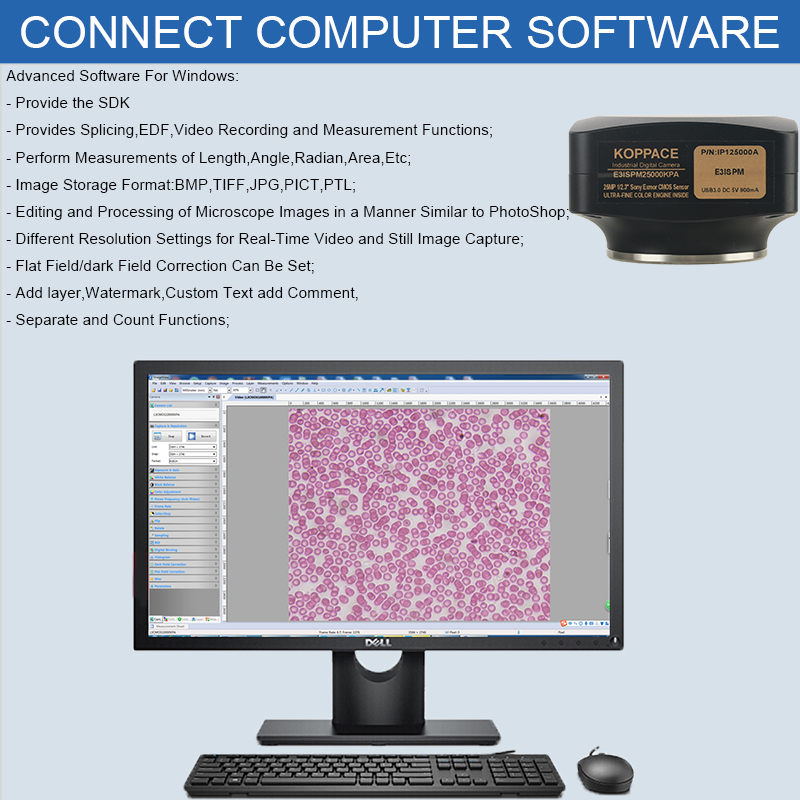

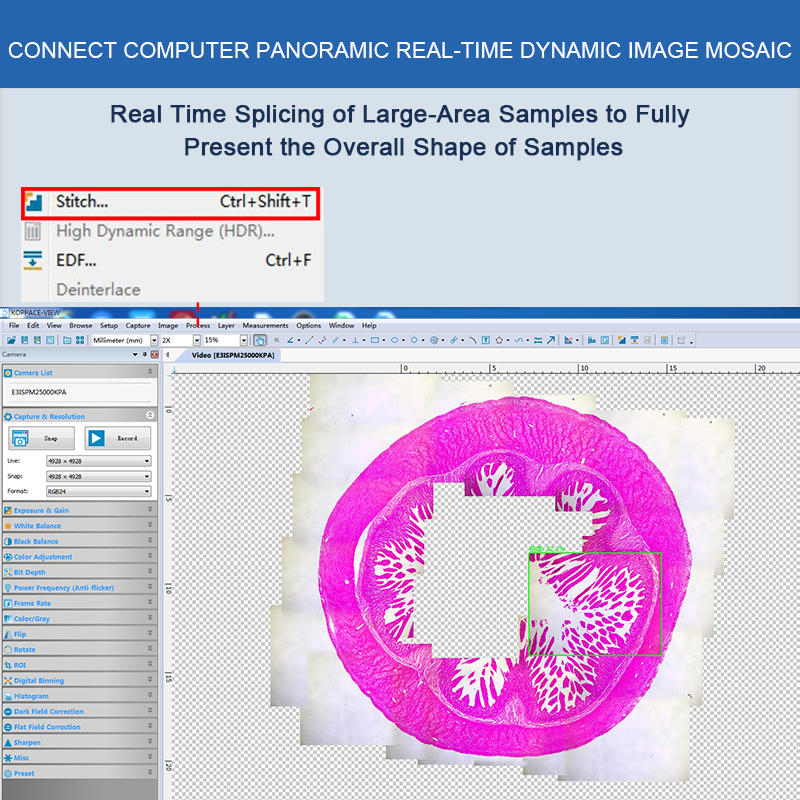

| Camera Function | Advanced software for Windows: - SDK Available - Provides Stitching,EDF,Video Recording and Measurement Functions - Measurement of Length,Angle,Radian,area,etc. - Save Still Images in BMP,TIFF,JPG,PICT,PTL or other Formats - Edit and Process microscope images in a manner similar to PhotoShop |

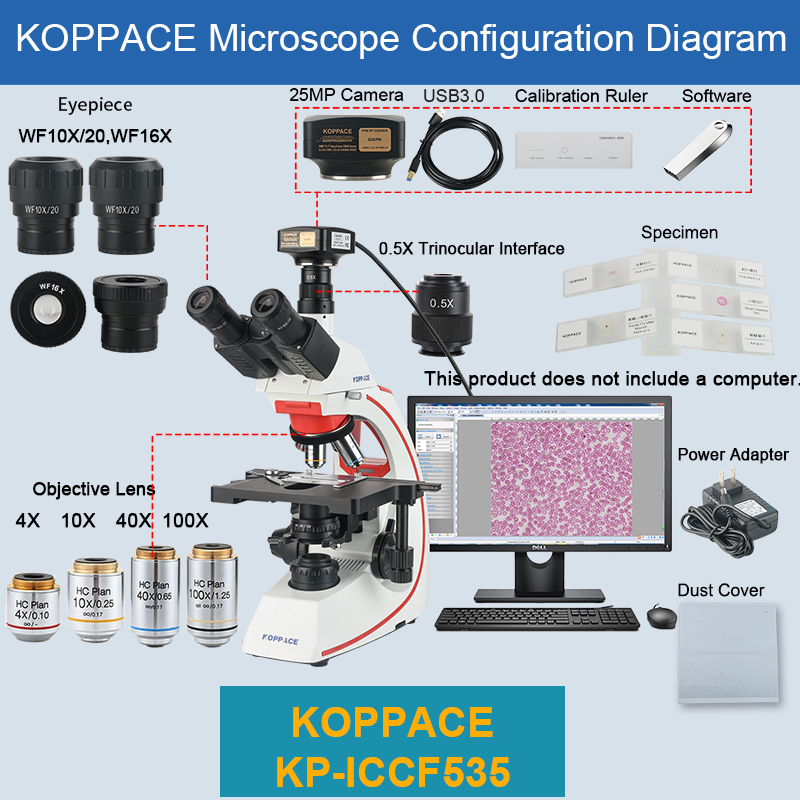

| Packing List | 1、Eyepiece WF10X/20 *2 2、Eyepiece WF16X *2 3、Objective lens HC PLAN 4X *1 4、Objective lens HC PLAN 10X *1 5、Objective lens HC PLAN 40X *1 6、Objective lens HC PLAN 100X *1 7、Trinocular Microscope Body *1 8、0.5X Trinocular Interface *1 9、Power adapter *1 10、5 Pieces Specimen *1 11、Dust Cover *1 12、25MP Camera *1 13、1.8m USB Cable *1 14、CD Software *1 15、Calibrating Ruler *1 |
| Note: | 1、100X (oil mirror),Because We Can Not Deliver liquid Products With Express Delivery,We Will Remove Immersion Oil. 2、This Product Does Not Contain Computer; 3、This Product is Through the USB Interface Connected to the Computer for Use,We Provide Free Professional Image Software; |
**************************************************************************************************************************************************************************************
