| Model | KP-AF200F |
| Monitor | 13.3 inch |
| Optical Enlargement | 0.28X-2X |
| Electronic Amplification | 14X-104X |
| Eyepiece | 0.4X |
| Objective Lens | 0.7X-5X |
| Field of Vision | 3.23mm-23.07mm |
| Working Distance | 100mm |
| Focusing Bracket | lifting Range 50mm |
| Lens Aperture | 50mm |
| Column Height | 350mm |
| Bottom Size | 320X260X16mm |
| LED Light Source | 62mm Inner Diameter Microscope LED Ring Light Source 64 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 9W |
| Sensor | 2 Million Pixels |
| Output Method | HDMI |
| Focusing Method | Manual Focusing,One Click Focus,Auto Focus |
| Sensor Size | 1/2.8 |
| Pixel Size | 2.2X2.2μm |
| HDMI Resolution Ratio | 1920X1080@60FPS |
| HDMI Video Recording | 1920X1080 @30FPS |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable |
| White Balance | Auto/Manual |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Color Adjustment | R、G、B |
| Image Comparison | Comparison of static and moving images |
| Image Freezing | Support Image Freezing |
| Camera Interface | C-Mount |
| Language | Chinese,English,Traditional Chinese |
| Input Voltage | AC100V—240V 12V |

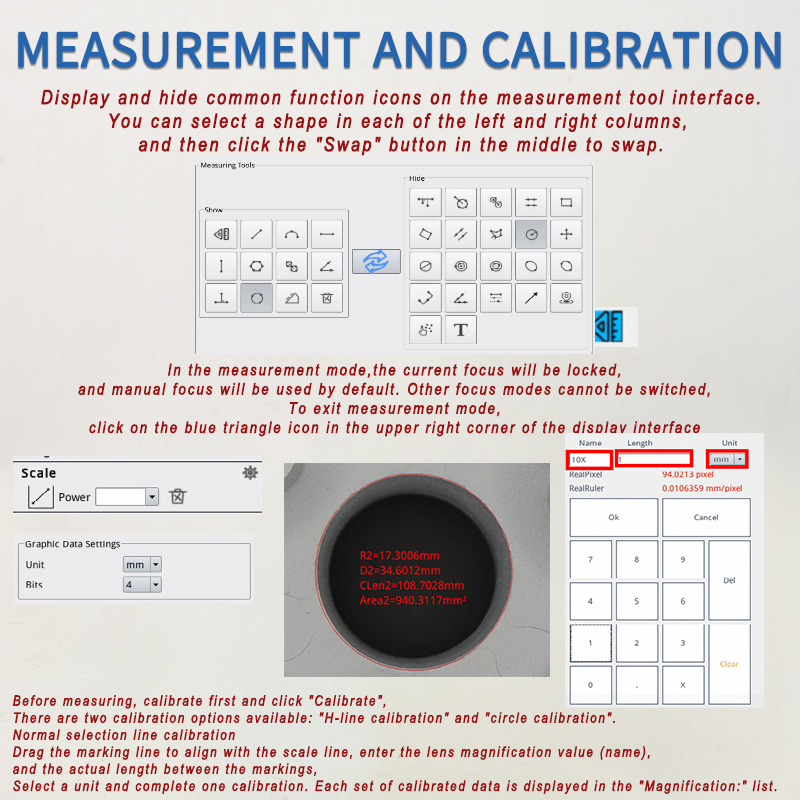

| Measuring Function | Point to point distance,point to line distance,line to line distance,angle,parallel line,rectangle,circle,line to center distance,Polygon,arc,circle margin,circle center distance,Dim sum distance,automatic edge searching,annotation and other functions |
| Packing List | 1、Focus Rack *1 2、Zoom Lens *1 3、LED Ring Light *1 4、Pillar Stand and Base Plate *1 5、Dust Cover *1 6、Autofocus camera *1 7、HDMI Cable *1 8、Measuring Calibration Ruler *1 9、Power Supply *1 10、Mouse *1 11、13.3-inch Monitor *1 |
| Note | 1、This Product Includes a 13.3-inch Monitor. 2. This product has HDMI output and built-in autofocus system. It needs to be connected to a microscope for use and cannot be imaged separately. 3. This product has two USB ports,one for connecting a mouse and one for connecting a USB drive. You can use the mouse to take photos and record videos directly on the display screen. 4. If measurement is required,it needs to be done in manual focusing mode. Calibration is required before measurement. |
**************************************************************************************************************************************************************************************
