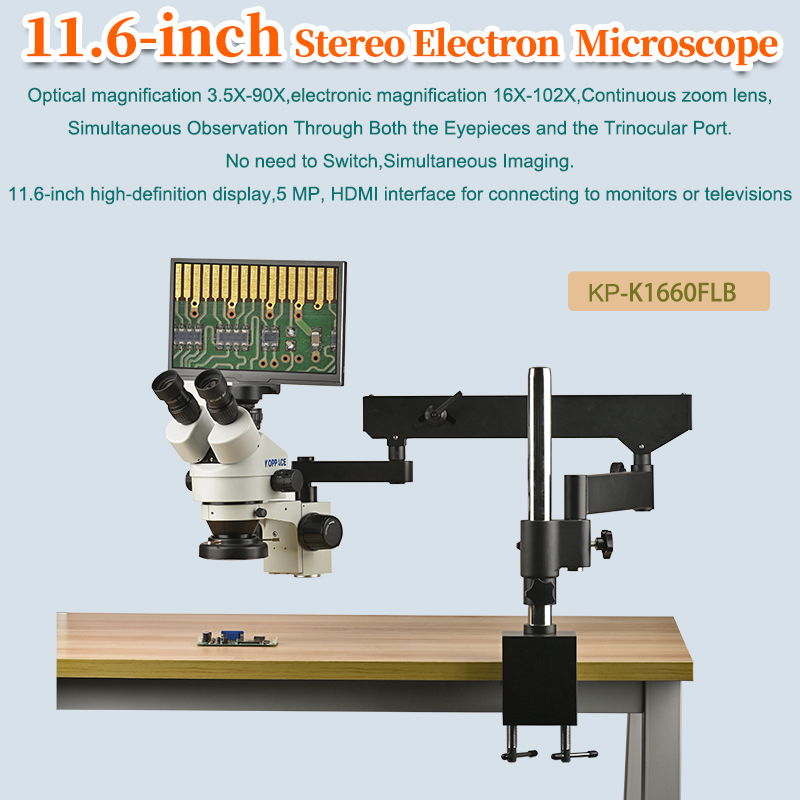

KOPPACE 16X-102X Trinocular Stereo Electron Measurement Microscope 5 MP 11.6-inch HD display

KP-K1160FLB
Optical Magnification:3.5X-90X
Electronic Magnification:16X-102X
Field of View:5.74mm-36.91mm
Eyepiece:High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10

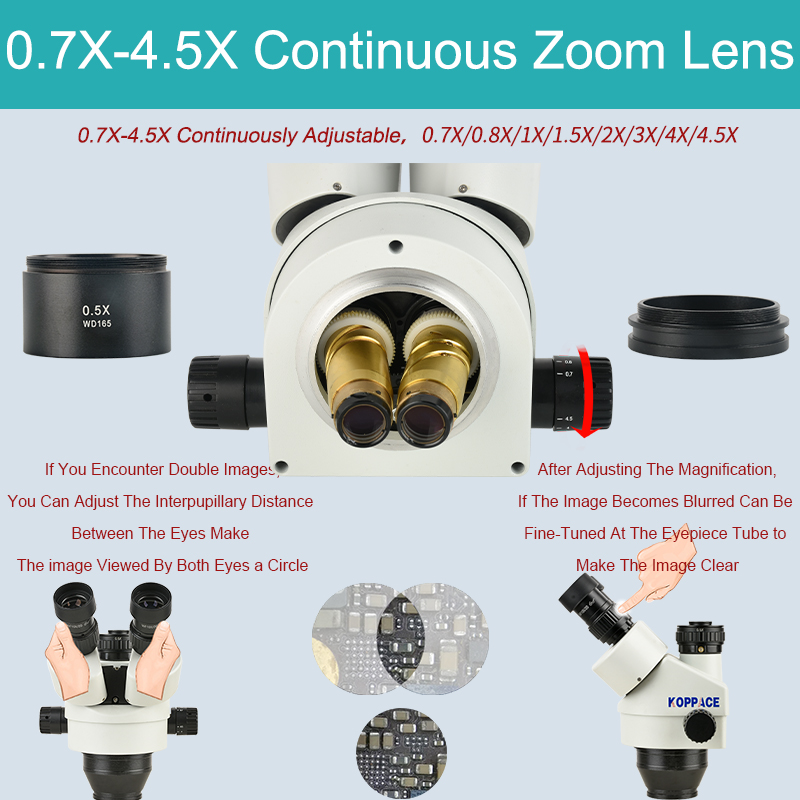

Objective Lens:0.7X-4.5X Continuous Amplification
Price:
$999.99
    Please select the information you wantX
Quantity:
-
+
(500 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
Model KP-K1160FLB
Optical Magnification 3.5X-90X
Electronic Magnification 16X-102X
Field of View 5.74mm-36.91mm
Eyepiece High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10
Objective Lens 0.7X-4.5X Continuous Amplification
Auxiliary Lens 0.5X/165mm,1X Oil Proof Mirror
Working Distance 100mm-165mm

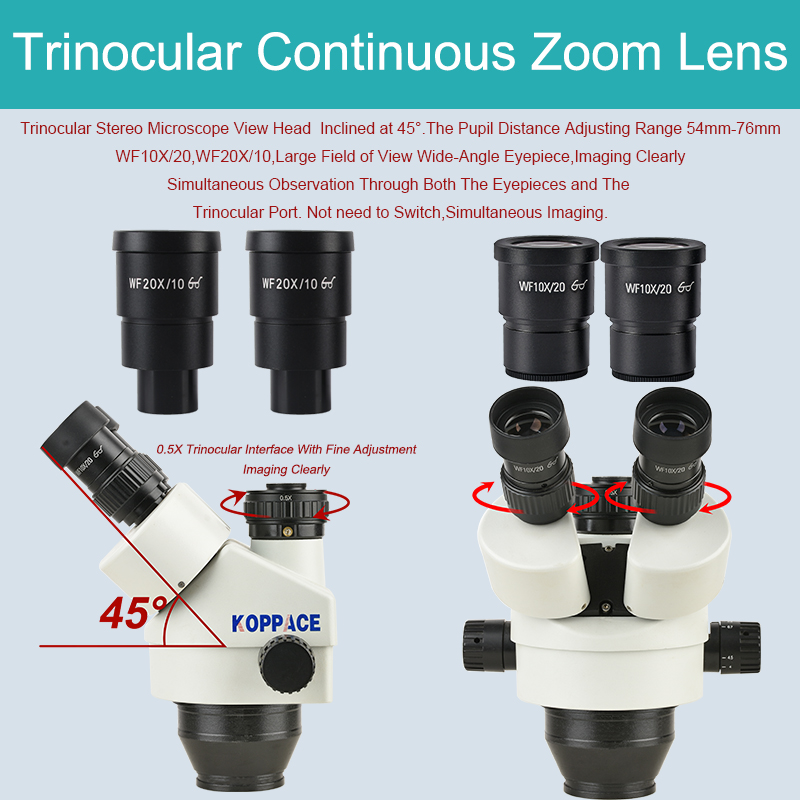

Viewing Head Trinocular Stereo Microscope View Head  Inclined at 45°.
The Pupil Distance Adjusting Range 54mm-76mm

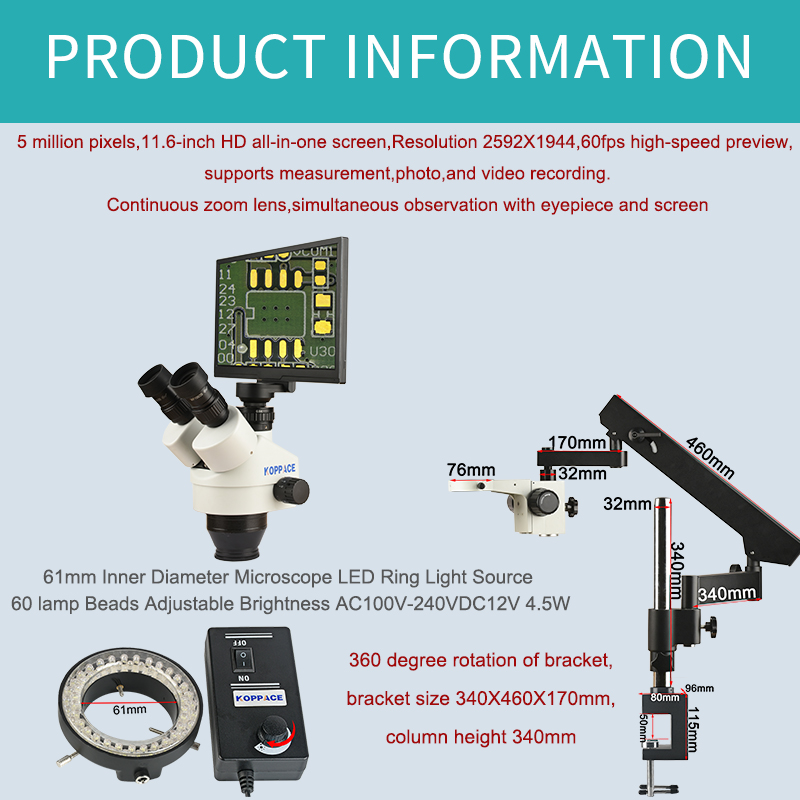

Bracket Column Height 340mm,Column Diameter Φ32mm,Rocker arm Bracket Size:170X340X460mm,Horizontal Rotation Range 360° Rotation
Trinocular Interface 0.5X CTV(Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.
LED Light Source 61mm Inner Diameter Microscope LED Ring Light Source 60 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 4.5W

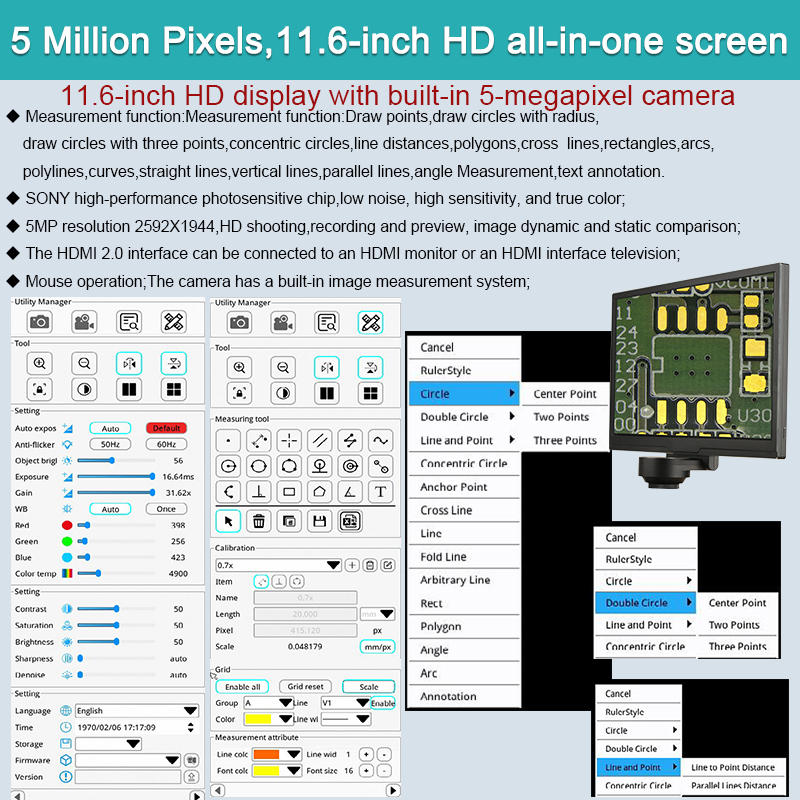

Pixel 5 million pixel 11.6-inch all-in-one machine
Output Method HDMI
Sensor 5M/Sony 1/2.8"CMOS
Photographic Resolution 2592x1944 in JPG format, with 60 frames
Video Resolution 1080P  30 frames (1920X1080)  MP4 format
Pixel Size 2.0μmX2.0μm
Frame Rate 60FPS
Color Adjustment R、G、B Independently Adjustable
White Balance Automatic/One-click

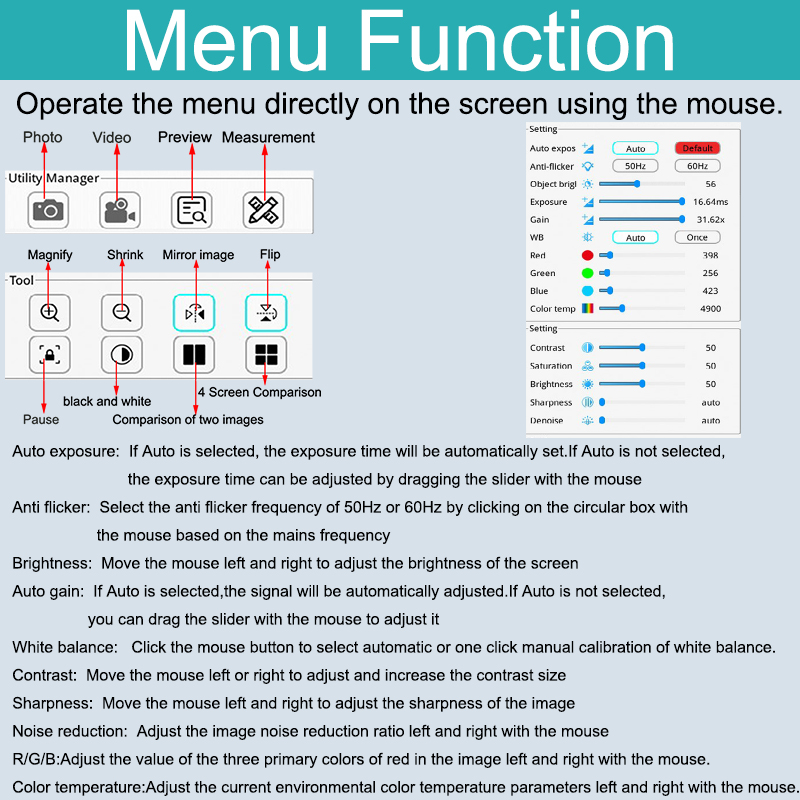

Image Adjustment Exposure value,saturation, brightness,contrast,sharpness,noise reduction, black and white, supports image freezing and flipping,crosshair,supports horizontal/vertical flipping,supports 10X digital magnification,supports Chinese,English, and multiple languages
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement
HDMI It can be connected to a monitor or an HDMI interface TV through the HDMI port.
Power Supply AC100V-240V DC-12V

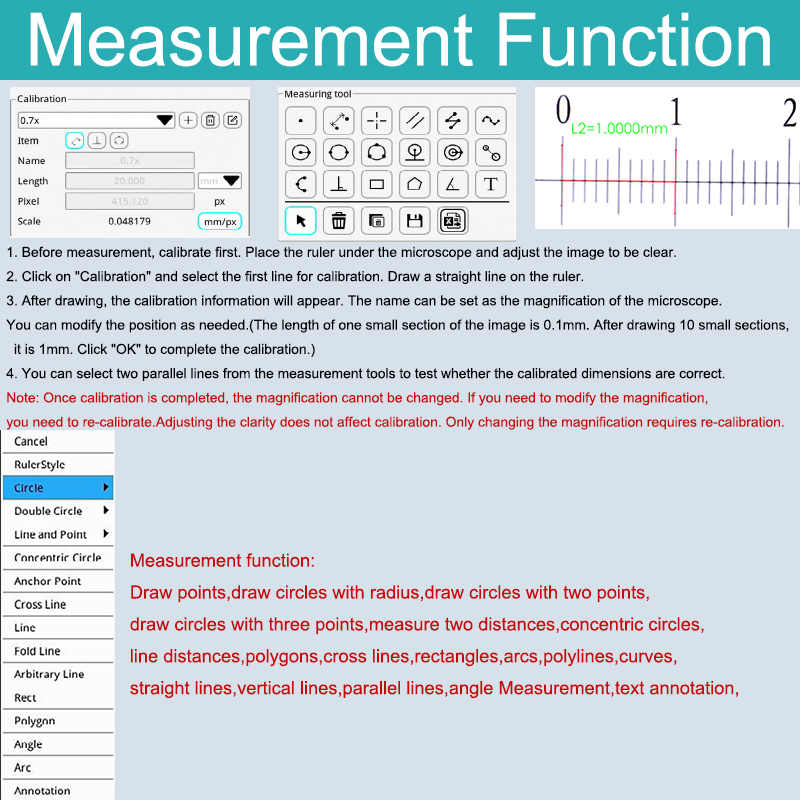

Measuring Function Draw points,draw circles with radius,draw circles with two points,draw circles with three points,measure two distances,concentric circles,line distances,polygons,cross  lines,rectangles,arcs,polylines,curves,straight lines,vertical lines,parallel lines,angle Measurement,text annotation,
Note 1. This product features a 11.6-inch integrated display with a camera.
2. This product is an HDMI output device and can only be connected to the display via HDMI for use.
3. This product has two USB outputs, one for connecting a mouse and the other for connecting a USB drive.
4. You can directly measure, save images and Excel data on the display using the mouse.
5. The eyepiece and the three-mirror interface can be used for observation simultaneously without the need for switching.

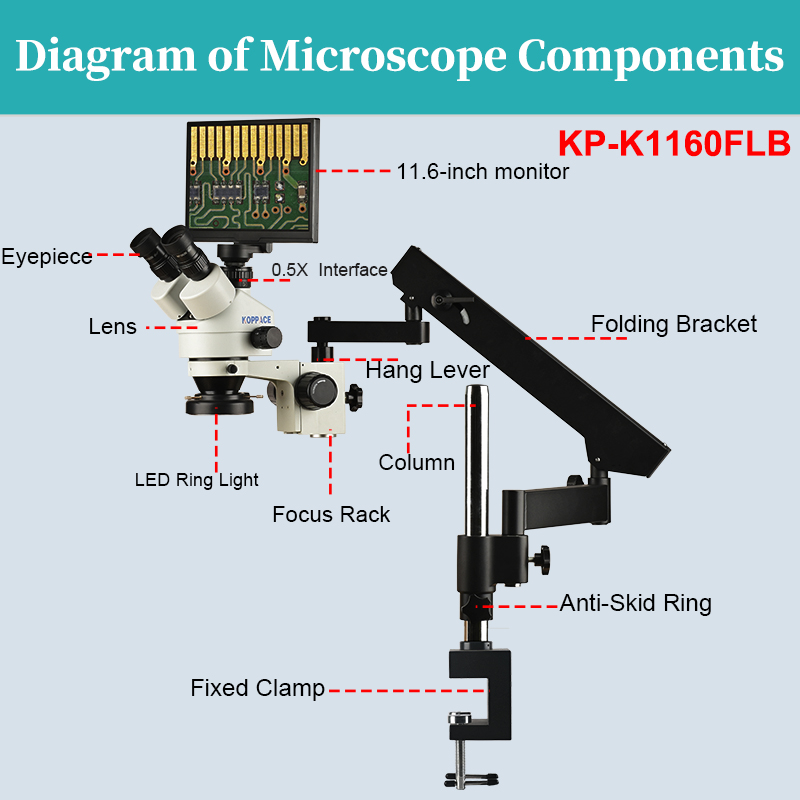

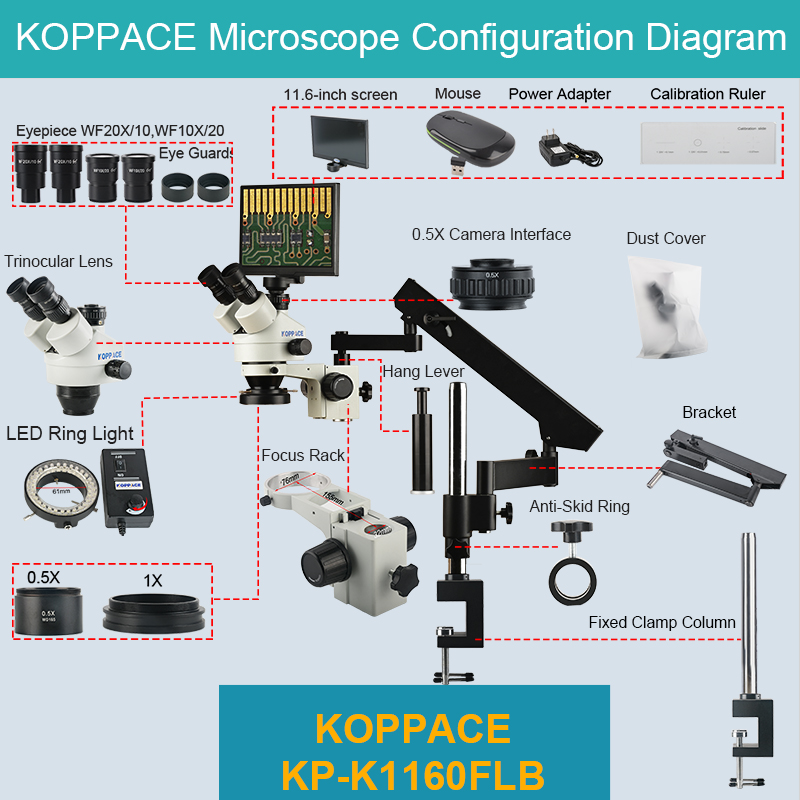

Packing List 1、Eyepiece WF10X/20 One Pair
2、Eyepiece WF20X/10 One Pair
3、Focus Rack *1
4、Eye Guards One Pair
5、0.7X-4.5X Trinocular Zoom Lens *1
6、LED Ring Light *1
7、Gimbal Bracket *1
8、Dust Cover *1
9、Anti-Skid Ring *1
10、0.5X Auxiliary Lens *1
11、1X Oil Proof Mirror *1
12、0.5X Camera  Interface *1
13、Fixed Clamp Column  *1
14、Hang Lever  *1
15、Mouse *1
16、The Camera Power Adapter *1
17、Calibrating Ruler *1
18、11.6-inch all-in-one camera *1



**********************************************************************************************************************************************************************************************
