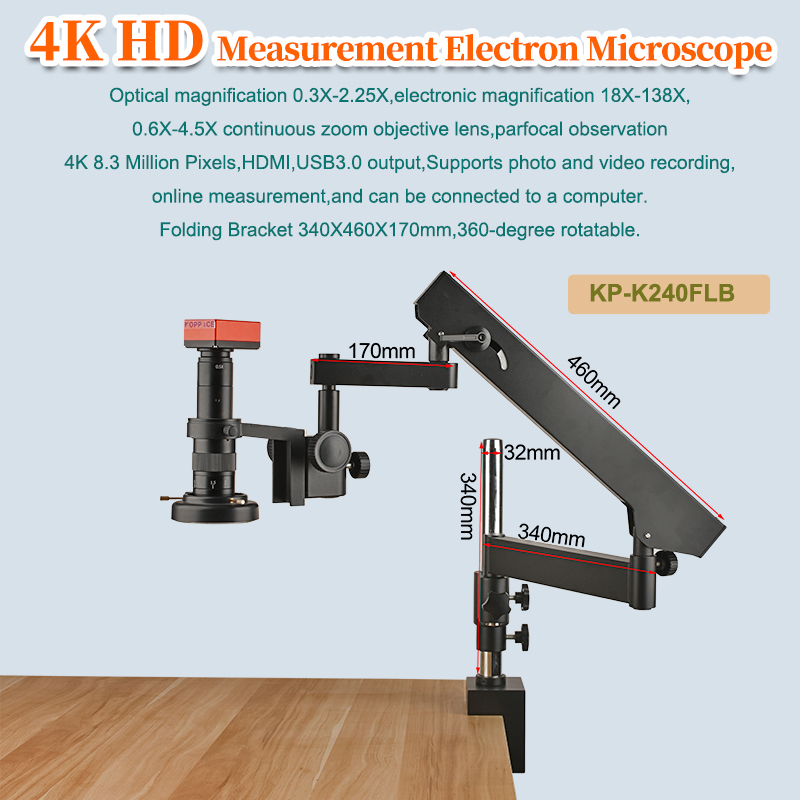

| Model | KP-K240FLB |
| Optical Magnification | 0.3X-2.25X |
| Electronic Magnification | 18X-138X |
| Field of View | 3.93mm-29.53mm |
| Eyepiece | 0.5X C-Mount |

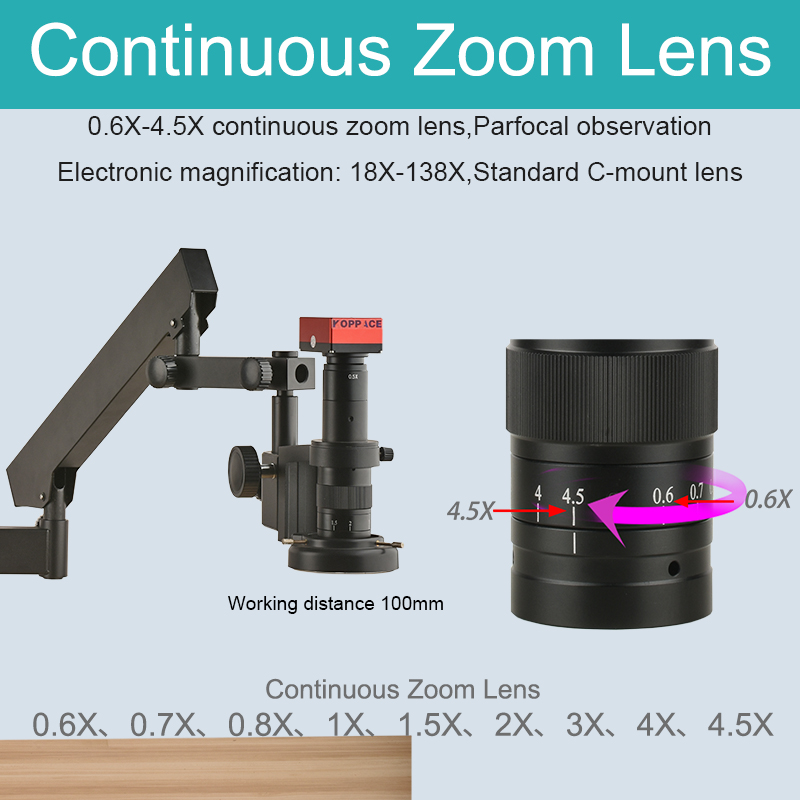

| Objective Lens | 0.6X-4.5X Continuous Amplification |
| Working Distance | 100mm |

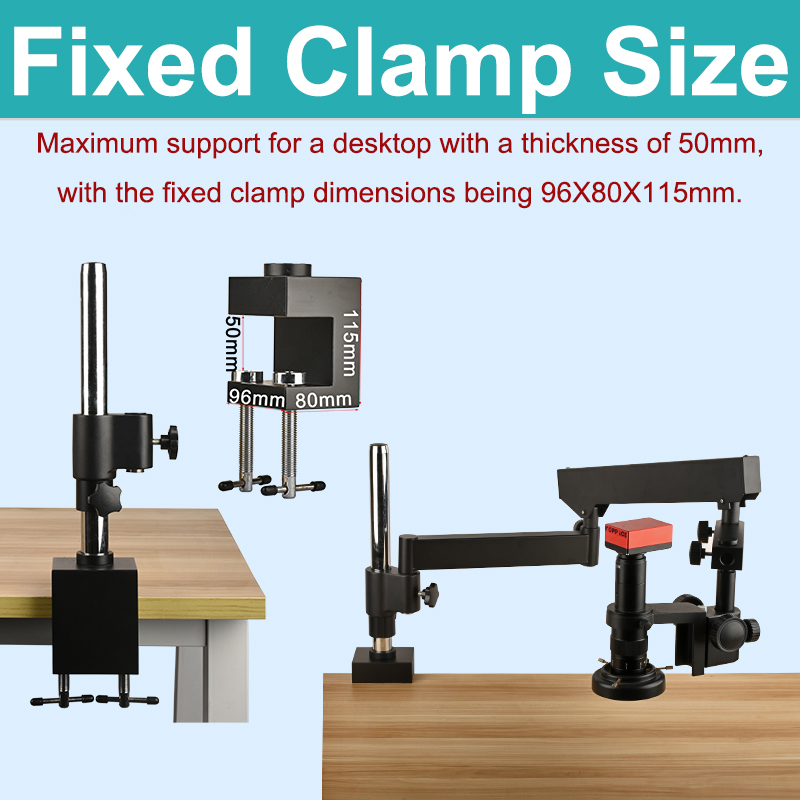

| Bracket Size | Column height 340mm,32mm in diameter,Focus frame column hole 25mm,lens hole 50mm,stroke 62mm,center distance 140mm,Folding Bracket 340X460X170mm,360-degree rotatable,Fixed Clamp Maximum installation interface size 50mm. |

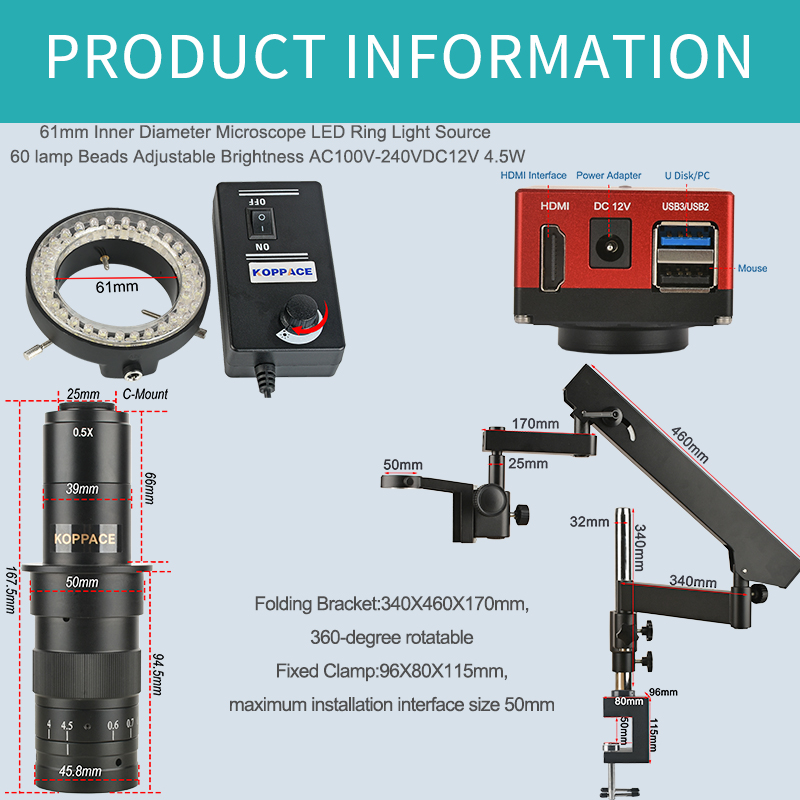

| LED Light Source | 61mm Inner Diameter Microscope LED Ring Light Source 60 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 4.5W |

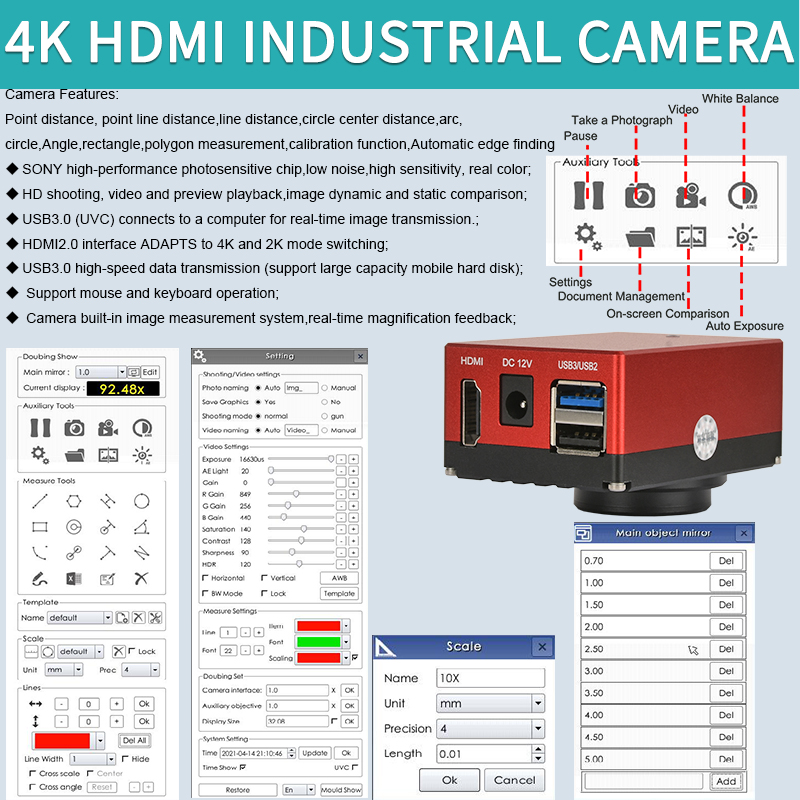

| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、USB3.0 |
| Sensor | 8.3M/Sony 1/1.8＂CMOS |
| Photographic Resolution | 3840X2160,(Photo can be Manually and Automatically Named file Name) JPG Format |
| Video Resolution | 1080P 30 Frames (1920X1080) MP4 Format |
| Pixel Size | 2.0μmX2.0μm |
| Frame Rate | 60FPS |
| Color Adjustment | R、G、B Independently Adjustable |
| White Balance | Auto/Manual |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |

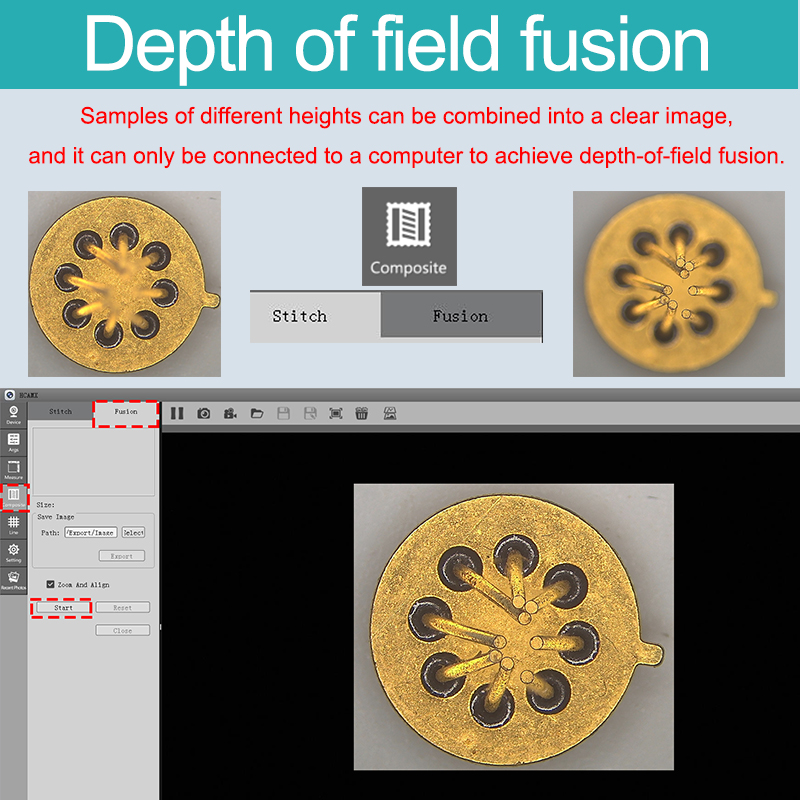

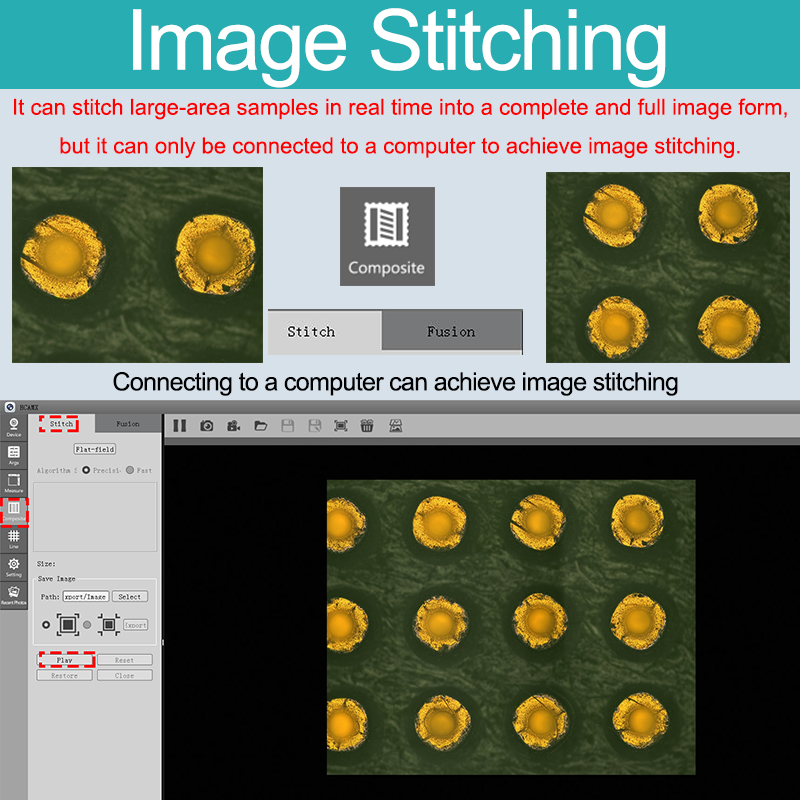

| USB3.0 | By connecting to a computer via a USB3.0 interface, image stitching and depth synthesis can be achieved. |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable |
| Power Supply | AC100V-240V DC-12V |

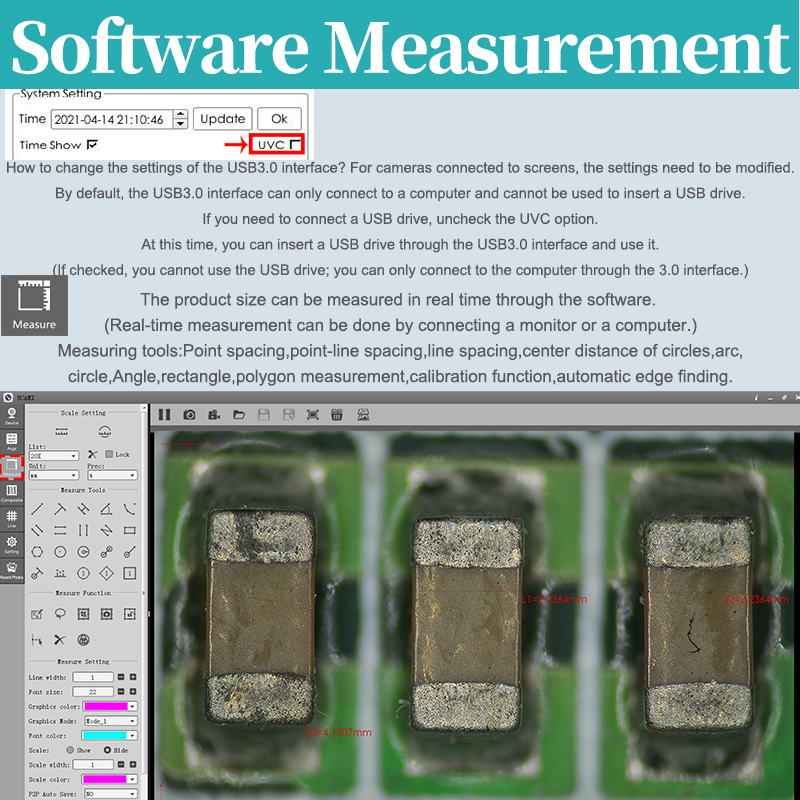

| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
| Note | 1. This product features HDMI/USB3.0 output. It can be directly connected to a monitor via an HDMI cable or connected to a computer via a USB3.0 interface for use.Provide professional imaging software. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. Connecting to a computer can achieve image stitching and depth of field synthesis. 4. This product does not contain a monitor. |

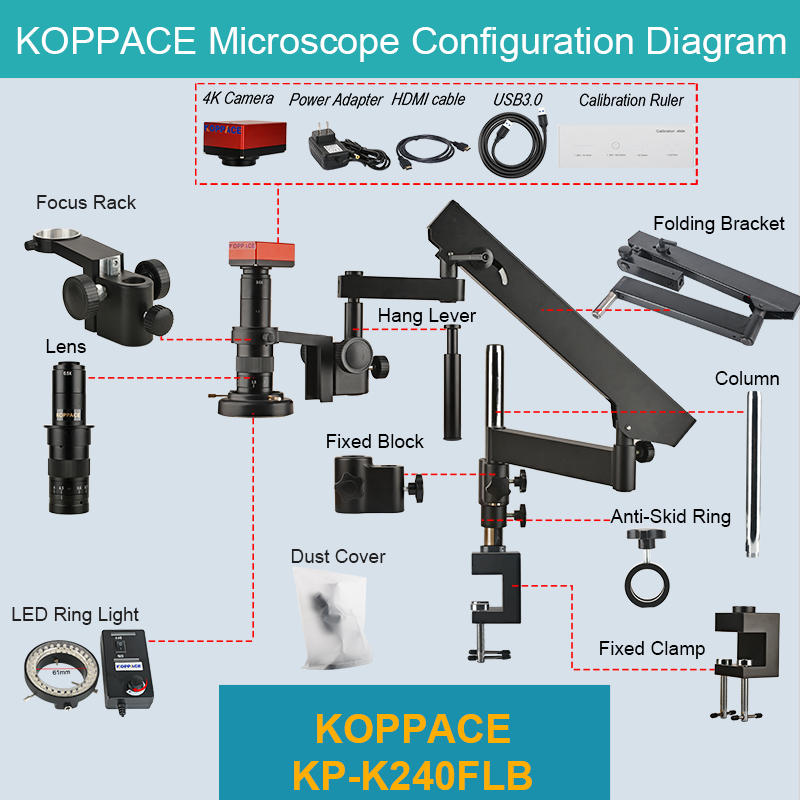

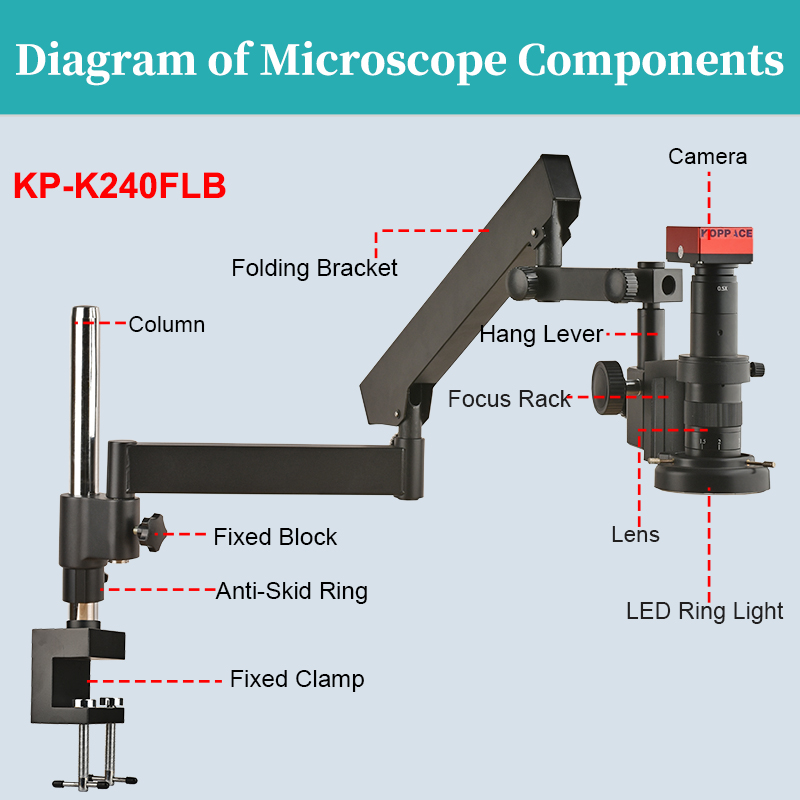

| Packing List | 1. Column *1 2. Anti Slip Ring *1 3. Folding Bracket *1 4. Focusing Bracket *1 5. Hang Lever *1 6. Fixed Clamp *1 7. Fixed Block *1 8. Continuous Zoom Lens *1 9、LED Ring Light *1 10、Dust Cover *1 11、4K Camera *1 12、HDMI Line *1 13、The Camera Power Adapter *1 14、Calibrating Ruler *1 15、USB 3.0 Line *1 |
**********************************************************************************************************************************************************************************************
