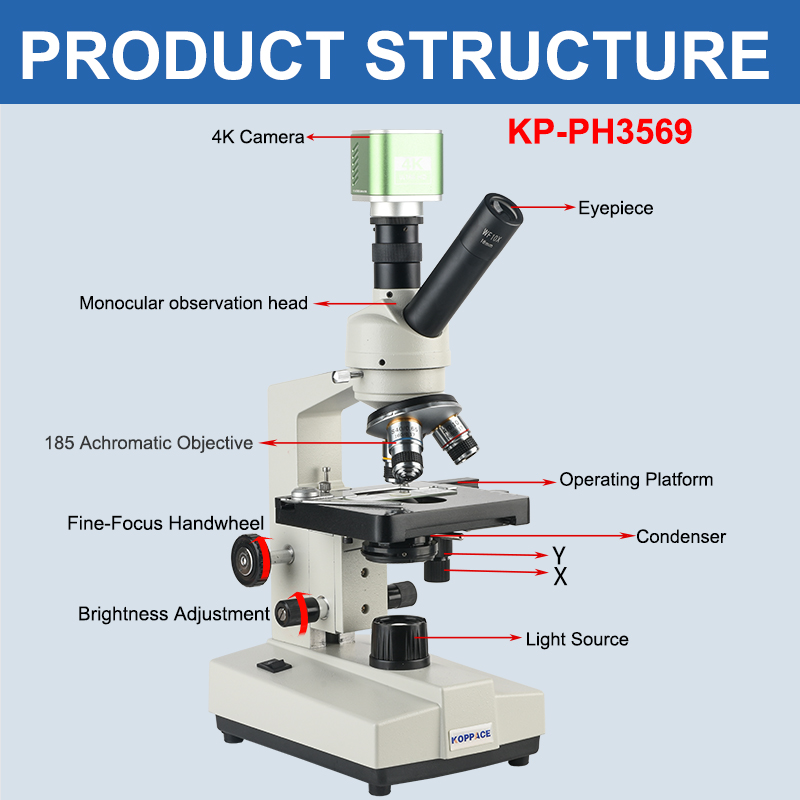

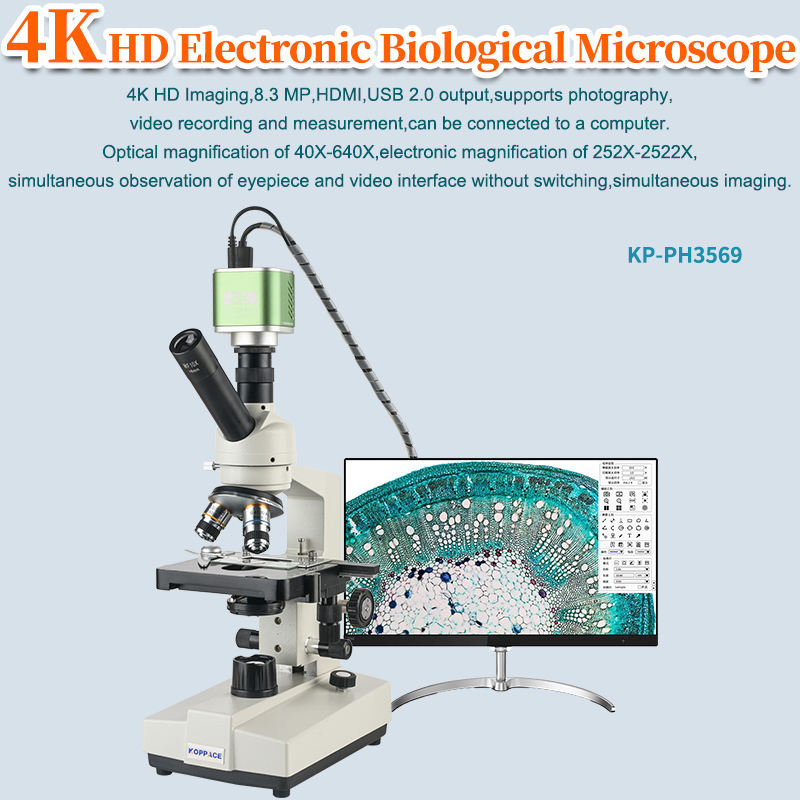

| Model | KP-PH3569 |
| Optical Magnification | 40X-640X |
| Electronic Amplification | 252X-2522X |

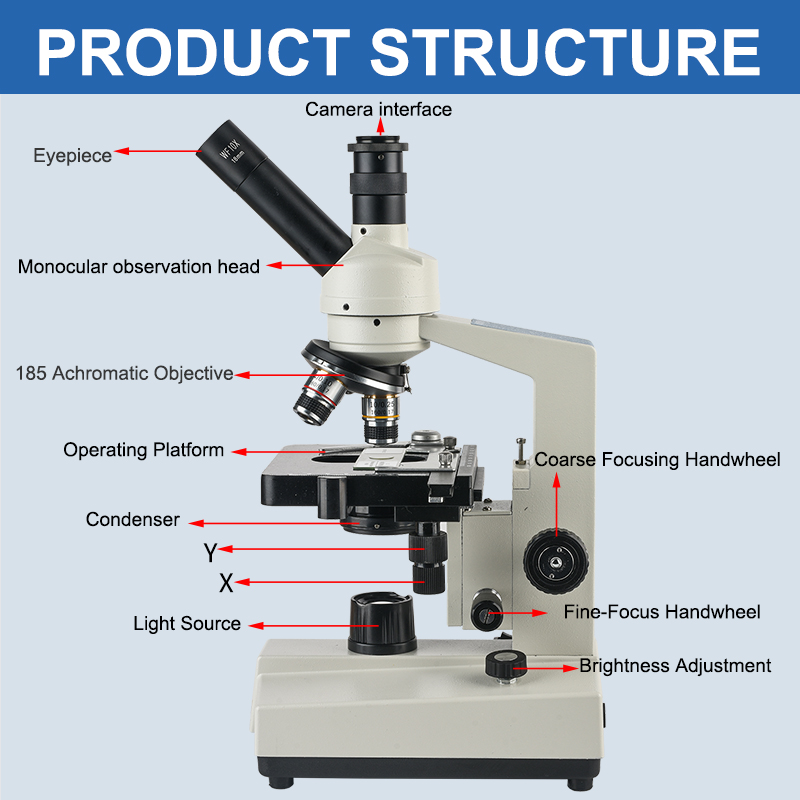

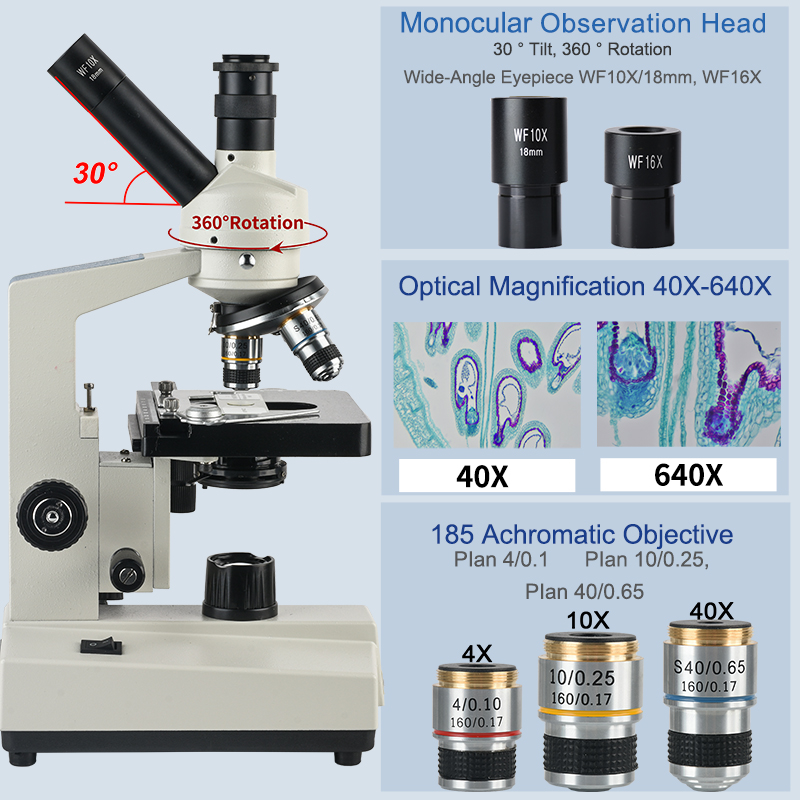

| Observation Tube | Monocular Observation Head,30 Degrees Inclined,360 Degrees Rotate |
| Eyepiece | Wide-angle Eyepiece WF10X/18mm,Wide-Angle Eyepiece WF16X |
| Objective Lens | 185 Achromatic Objective 4/0.1 ,10/0.25, 40/0.65 |
| Converter | Three-Hole Converter |

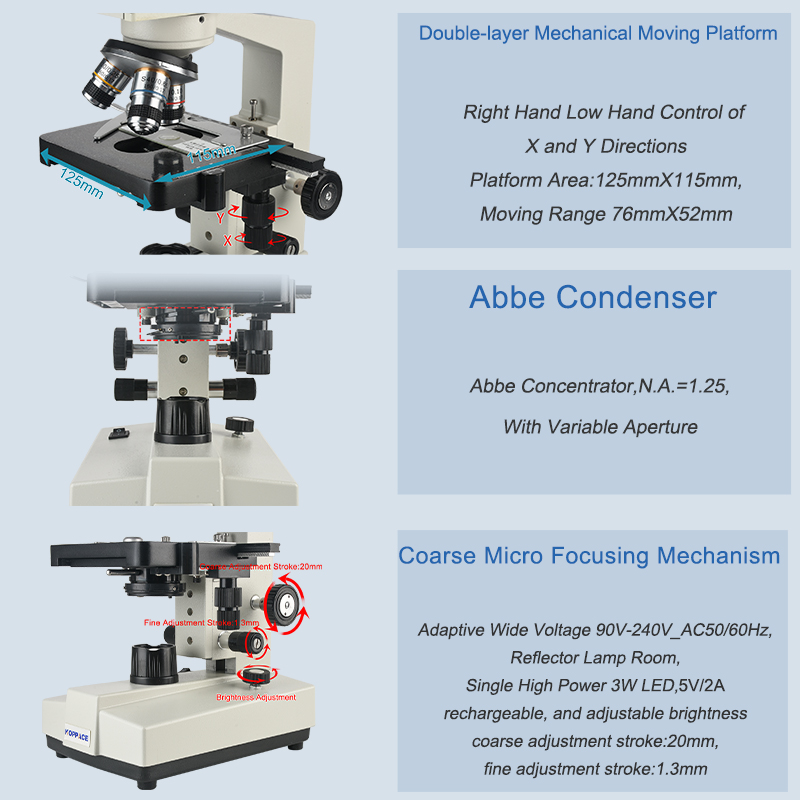

| Operating Platform | Right Hand Low Hand Control of X and Y Directions Platform Area:125mmX115mm,Moving Range 76mmX52mm |
| Coarse Micro Focusing Mechanism | Coarse Micro Adjustment,Coarse 20mm,Fine-Tuning of 1.3mm |
| Condenser | Abbe Concentrator, N.A.=1.25,With Variable Aperture |
| Light Source | Reflector Lamp Room,Single High Power 3W LED |
| Power | External Regulated Power Adapter, 90V-240V_AC50/60Hz DC5V/2A |
| Video Interface | 1X |
| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、USB |
| Sensor | 8.3M/Sony |
| Sensor Size | 1/1.8＂CMOS |
| Resolution Frame Rate | 3840X2160 @30FPS,1920X1080 @30FPS |
| Pixel Size | 2.0μmx2.0μm |
| RGB | Red,Green and blue Independently Adjustable,Color Temperature Adjustable |
| Exposure | Auto/Manual |
| White Balance | Automatic/One Click |
| Mirror Configuration | Black and White Mode,Horizontal Mirror,Vertical Mirror |
| Grid Line | Supports 8 Sets of Horizontal and Vertical Lines,Colors available (Red,Blue,Green, Sky blue,Orange,Yellow,White,Black)The line can be Moved,the Center Cross can be Set,and 4 Kinds of Line Widths can be Selected |
| Image Adjustment | Brightness,Contrast,Saturation,Sharpness,Noise Reduction,Anti-Flicker |

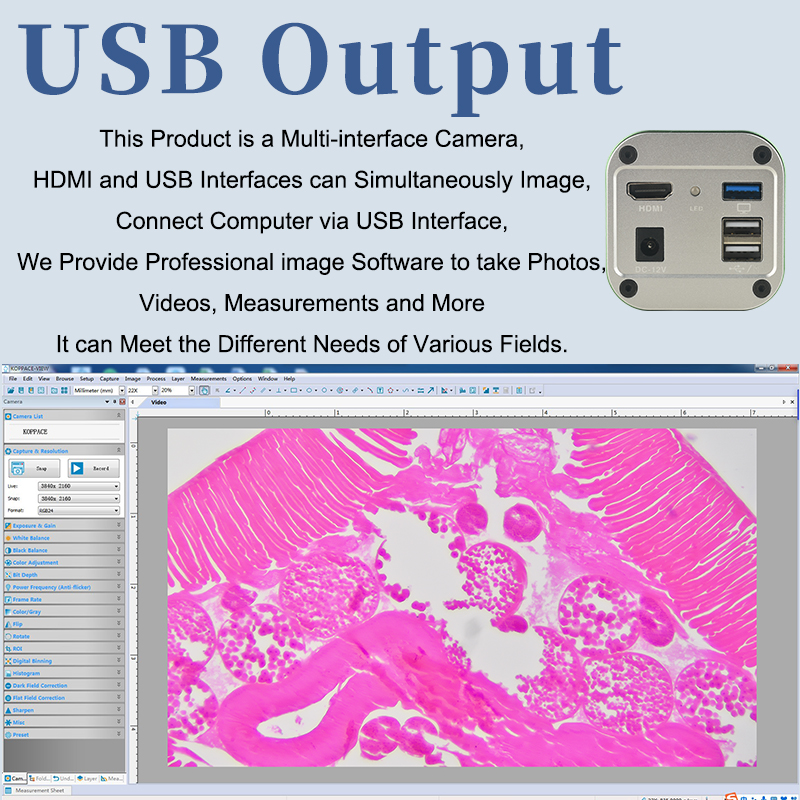

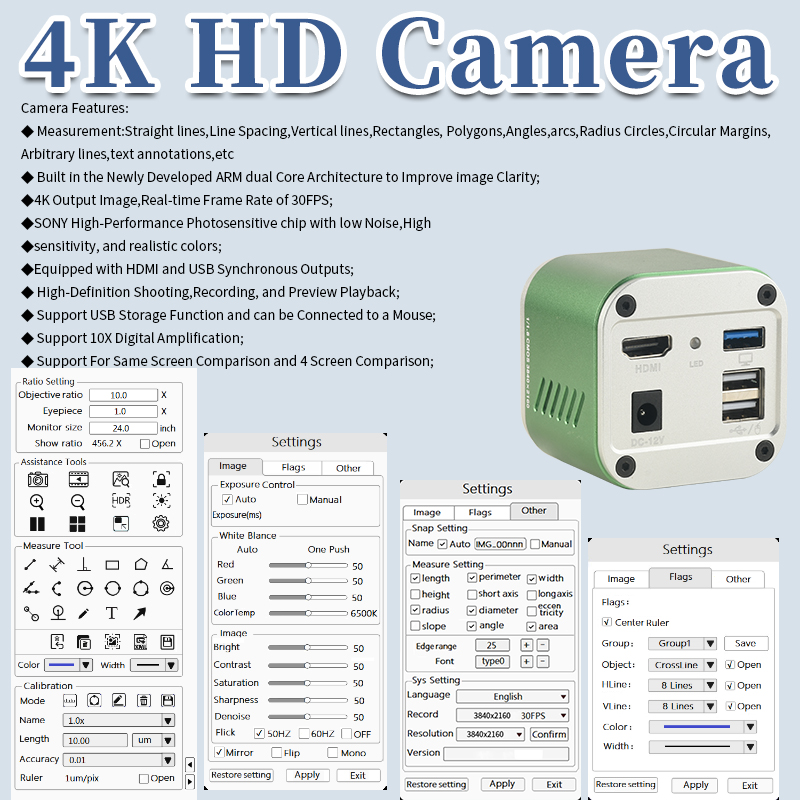

| PC Software | KOPPACE-VIEW（Support Photo,Video,Measurement） |
| Power Supply | DC12V/1A |
| Camera Interface | C-Mount |
| Language | Chinese,English,Traditional |
| Digital Amplification | 10X Digital Amplification |
| Image Contrast | Supports Comparison Between 2 and 4 Images |
| Menu | Mouse Operation |
| Storage Mode | U Disk Storage |
| Measuring Function | Measurement:Straight lines,Line Spacing,Vertical lines, Rectangles, Polygons,Angles,arcs,Radius Circles,Circular Margins, Arbitrary lines,text annotations,etc |

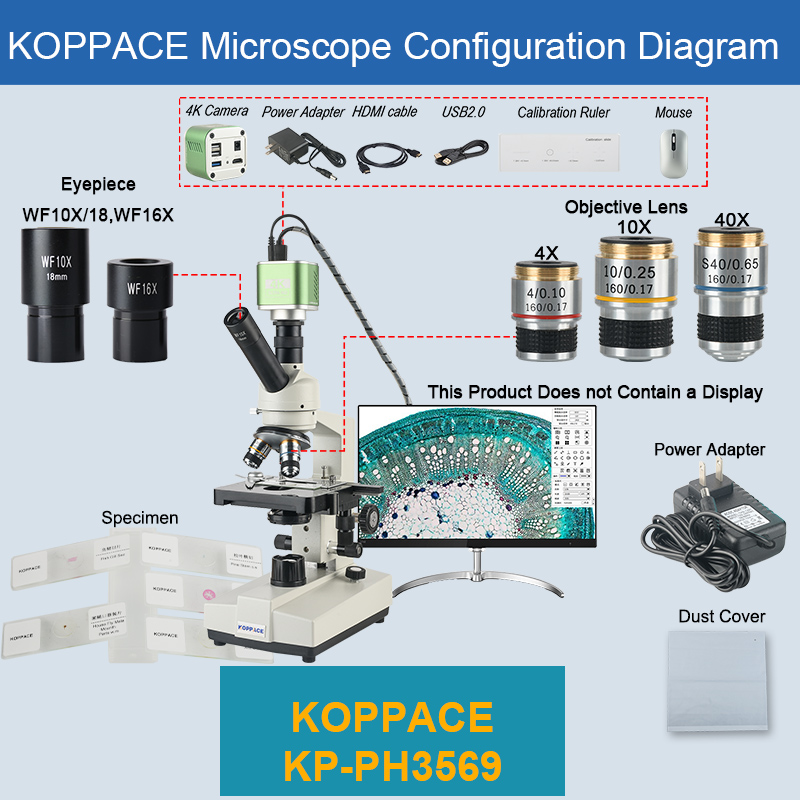

| Packing List | 1、Eyepiece WF10X/18mm *1 2、Eyepiece WF16X *1 3、Objective Lens 4X *1 4、Objective Lens 10X *1 5、Objective Lens 40X *1 6、Monocular Microscope Body *1 7、Power Adapter *1 8、5 Pieces Specimen *1 9、Dust Cover *1 10、4K Camera *1 11、HDMI Cable *1 12、USB Cable *1 13、Power Supply *1 14、Mouse *1 15、Calibration Ruler *1 |

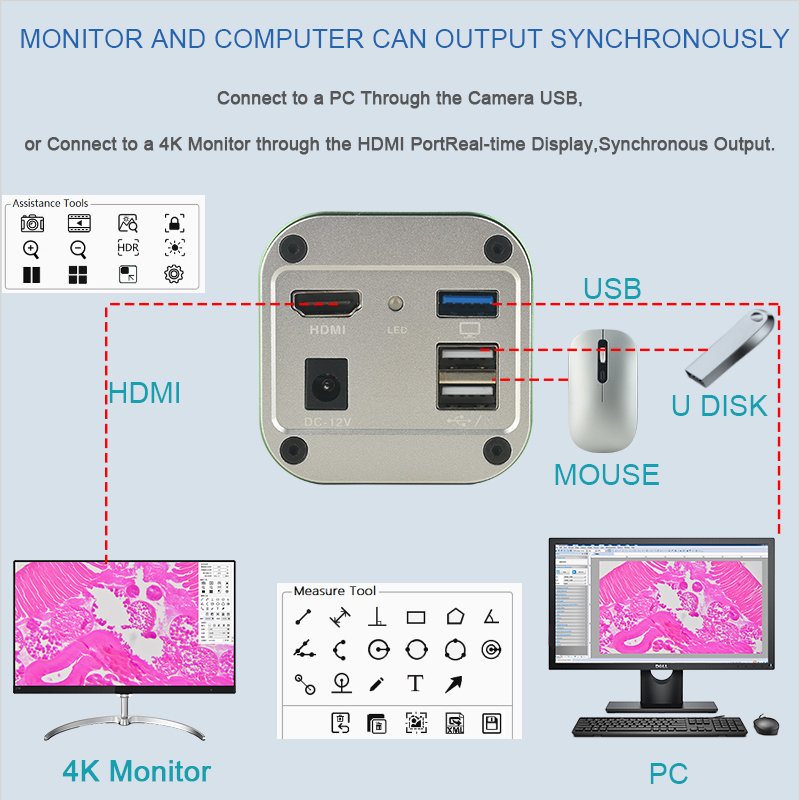

| Note: | 1、 This Product Does not Contain a Display; 2、 HDMI be Connected to a Monitor,USB Connect to a Computer and Synchronize Output. 3、The Product Has Three USB Ports,One For Connecting the Mouse and one For Connecting the USB Flash Drive. One for connecting to a computer,This product can be connected to a monitor or computer for measurement. 4、This Product Comes With a Measuring Calibration Ruler. |
**************************************************************************************************************************************************************************************
