| Model |
KP-2K-3DW215 |
| Product Features |
1. 2D/3D Free Manual Switching,360° Rotation.
2. Measurement Function:Point Spacing,Point-line Spacing,line Spacing,Center-to-Center Distance, Arc, Circle,Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Finding.
3. This Product has two USB Outputs,One For Mouse and one For U Disk.
4. You Can Use the Mouse to Measure Directly on The Display Screen,Save Pictures and Excel Data. |
| Magnification |
20X-150X |
| Optical Magnification |
0.3-2.2X |
| Eyepiece |
1X |
| Objective Lens |
0.3X-2.2X |
| 3D Imaging Angle |
45° |
| 2D/3D Manual Switch |
The Working Distance Remains the Same,No Need to Refocus
After Adjusting the Center,the Center Remains the Same
360°Free Choice,Objective Lens Angle 45° |
| Working Distance |
95mm |
| Field of View |
3.6mm-26mm |
| Arm Height |
330mm |
| Base Plate Size |
320mmx240mm |
| LED Light Source |
56 LED Lamp Beads,Adjustable Brightness,64mm Inner Diameter, illuminance 30000 Lux,Output Voltage 12V 700MA |
| Sensor |
2 Million Pixels |
| Sensor Size |
1/2＂CMOS |
| Resolution |
1920×1080 |
| Like yuan Size |
3.75×3.75um |
| Output Frame Rate |
60FPS |
| Color Adjustment |
R、G、B |
| White Balance Adjustment |
Auto/Manual |
| Exposure |
Auto/Manual |
| Anti-Reflective |
Manual Setting |
| Contrast Adjustment |
Manual Setting |
| Menu Operation |
Mouse Operation |
| Way of Taking Pictures |
Manual |
| Storage Mode |
U Disk.Can Take Pictures.Video,and Measure |
| Crosshair Function |
100 Groups |
| Lens Interface |
C Interface |
| Power Supply |
DC-12V |

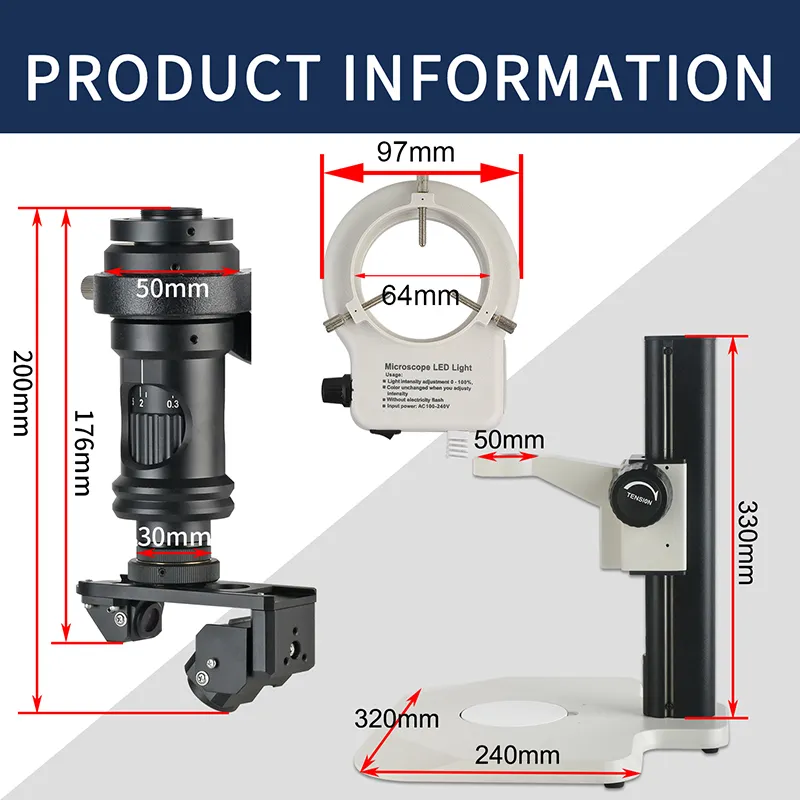

| Packing List |
1、3D Zoom Lens *1
2、LED Light Source
3、Microscope Bracket *1
4、2K Camera *1
5、High Definition Line *1
6、The Camera Power Adapter *1
7、Calibrating Ruler *1 |
Note:
1、This Product is an HDMI Output and can only be Connected to a Display With an HDMI Connector.The Product Has Two USB Outputs,one for Connecting a Mouse and one For Connecting to a USB Flash Drive.Photographcan be Performed Directly on The Display With the Mouse.Save Pictures and Video.
2、This Product Does Not Contain a Monitor.
3、This Product Needs to be Measured in 2D Plane State,and Cannot be Measured in 3D State. |
**************************************************************************************************************************************************************************************
