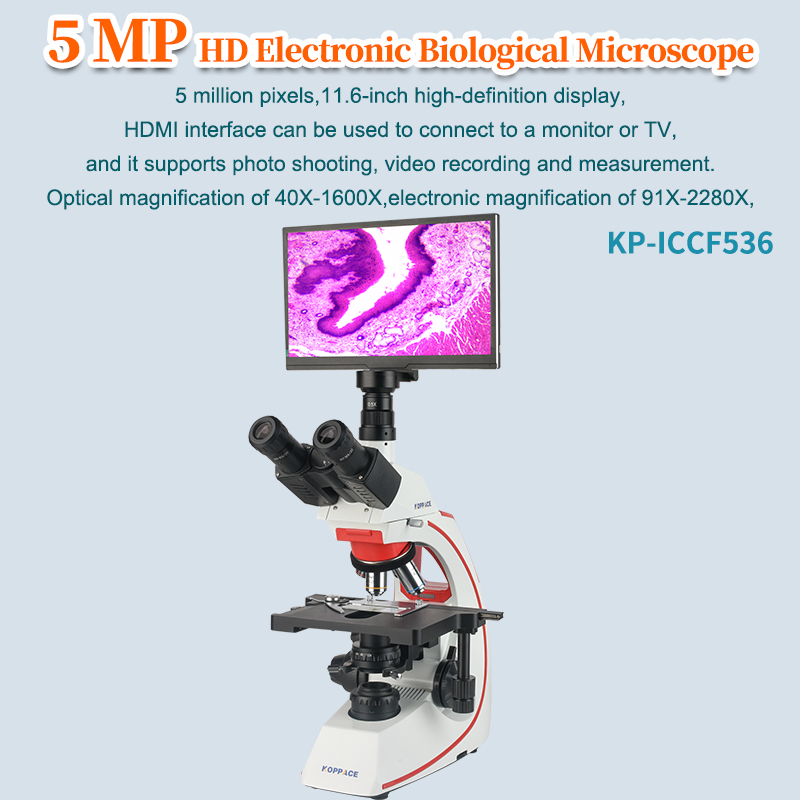

| Model | KP-ICCF536 |
| Optical Magnification | 40X-1600X |
| Electronic Amplification | 91X-2280X |

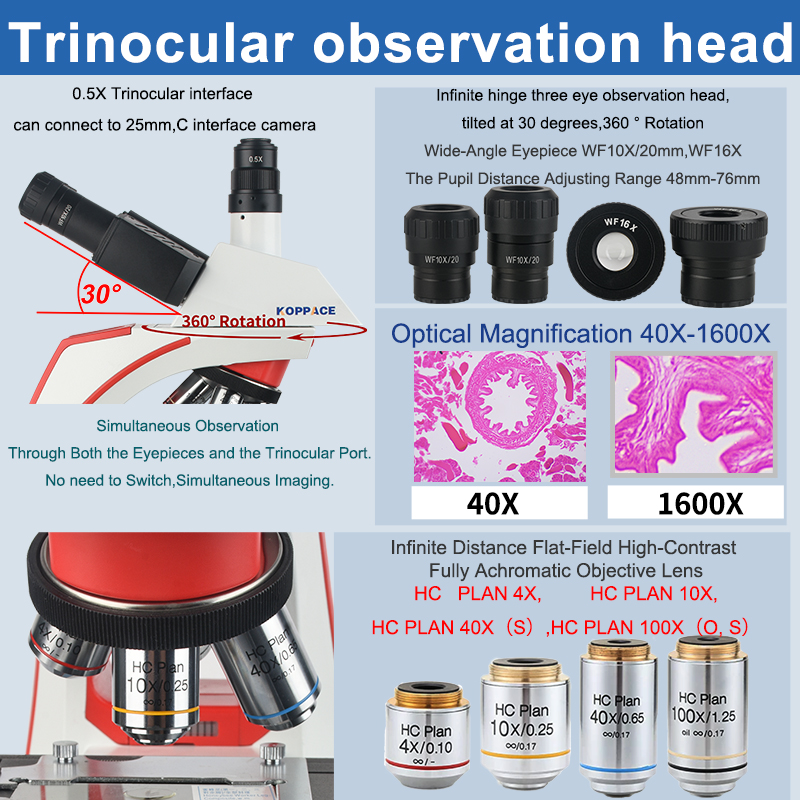

| Observation Tube | Infinity hinged trinoculars: 30 °tilt,360 °Rotatable interpupillary distance: 48-76mm （Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.） |
| Eyepiece | High eye point,wide Angle WF10X/20mm,WF16X/16mm,adjustable vision. |
| Objective Lens | Infinite Distance Flat-Field High-Contrast Fully Achromatic Objective Lens HC PLAN 4X, HC PLAN 10X, HC PLAN 40X(S)), HC PLAN 100X(O, S) |
| Converter | Four holes inclined,steel ball positioning |

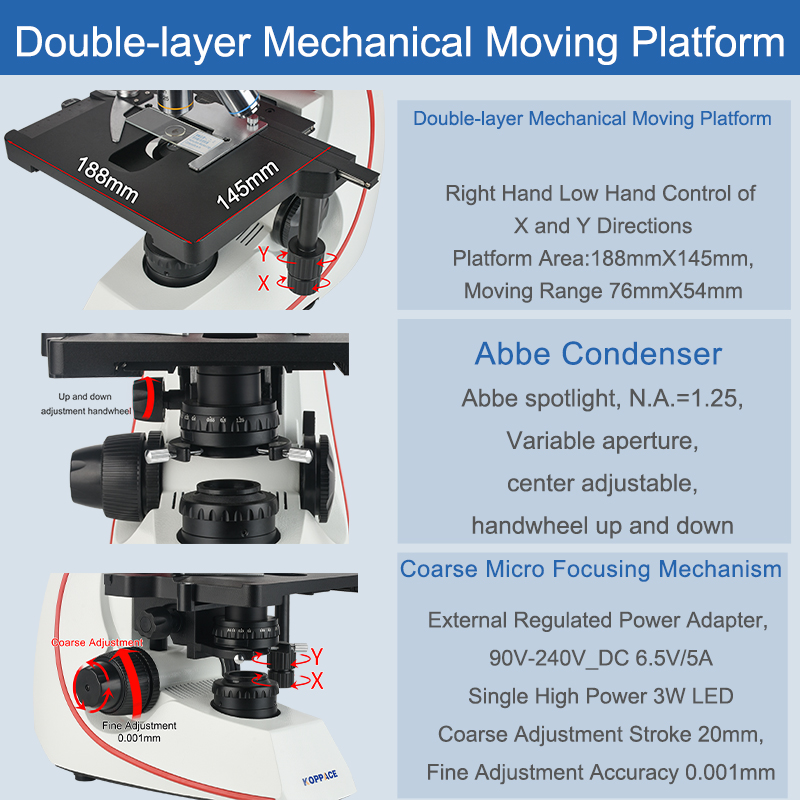

| Operating Platform | Double layer Mechanical Moving platform,Triangular steel Column guide rail up and down,area:188mmX145mm,Moving range:76mmX54mm |
| Coarse Micro Focusing Mechanism | Coaxial roughing and fine-tuning,with hand wheel tightening adjustment and limit device,coarse-tuning 20mm,fine-tuning accuracy 0.001mm |
| Condenser | Full Kela abbe convergent lens,N.A=1.25, up and down,adjustable center,variable diaphragm |
| Light Source | LED cold light source,3W,precision stepless dimming,no flicker |
| Power | External switch stabilized power supply,input ac90-240v,output DC 6.5V/5A |
| Trinocular Interface | 0.5X |
| Pixel | 5 Million Pixels 11.6-Inch All-in-One |
| Output Method | HDMI(You Can Connect a TV or Monitor With an HDMI Interface.) |
| Sensor | 5M/Sony 1/2.8＂CMOS |
| Photographic Resolution | 2592x1944 in JPG format,with 60 frames |
| Video Resolution | 1080P 30 frames (1920X1080) MP4 format |
| Pixel Size | 2μmx2μm |
| Color Adjustment | R、G、B Independently Adjustable |
| White Balance | Automatic/One-click |

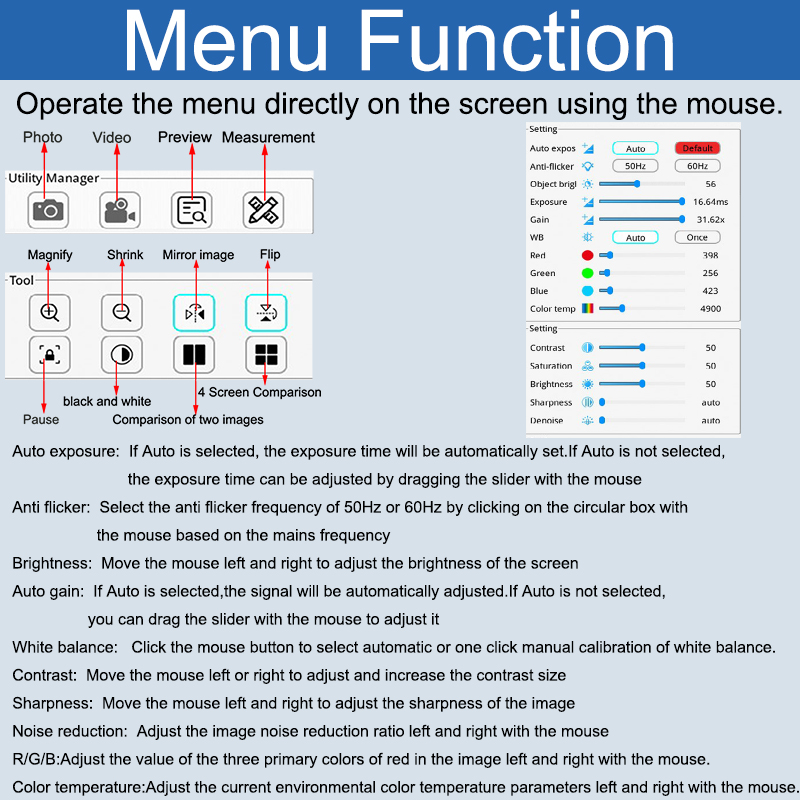

| Image Adjustment | Exposure value,saturation, brightness,contrast,sharpness,noise reduction, black and white, supports image freezing and flipping,crosshair,supports horizontal/vertical flipping,supports 10X digital magnification,supports Chinese,English, and multiple languages |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |
| HDMI | It can be connected to a monitor or an HDMI interface TV through the HDMI port. |
| Power Supply | AC100V-240V DC-12V |

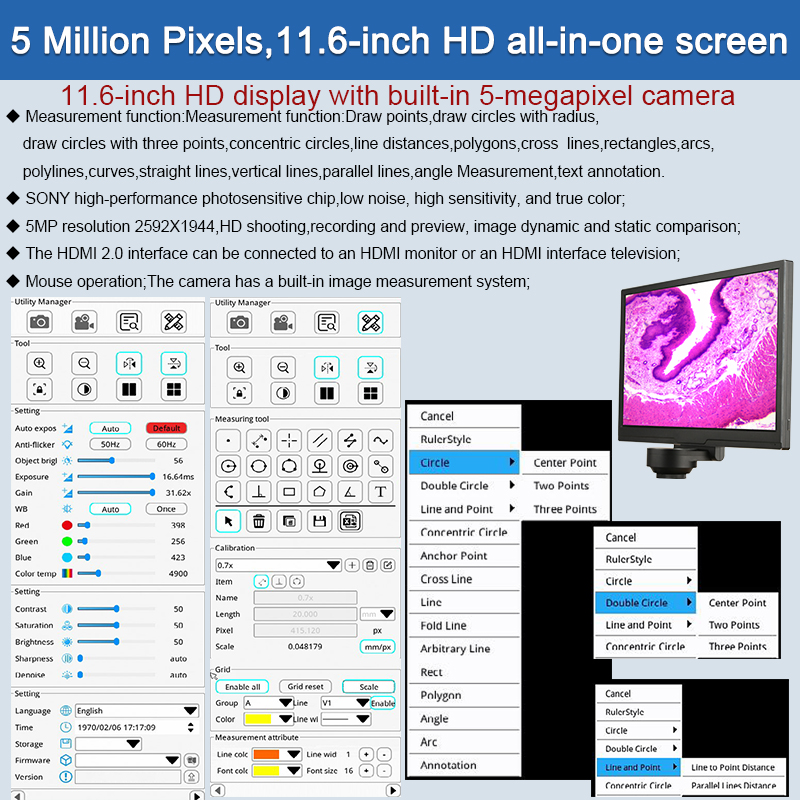

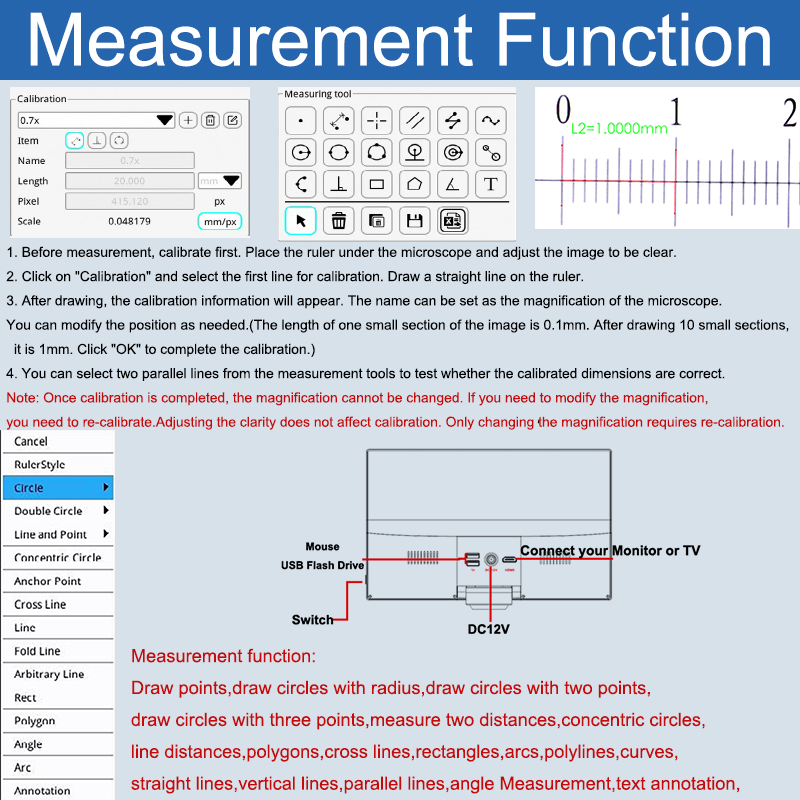

| Measuring Function | Draw points,draw circles with radius,draw circles with two points,draw circles with three points,measure two distances,concentric circles,line distances,polygons,cross lines,rectangles,arcs,polylines,curves,straight lines,vertical lines,parallel lines,angle Measurement,text annotation, |

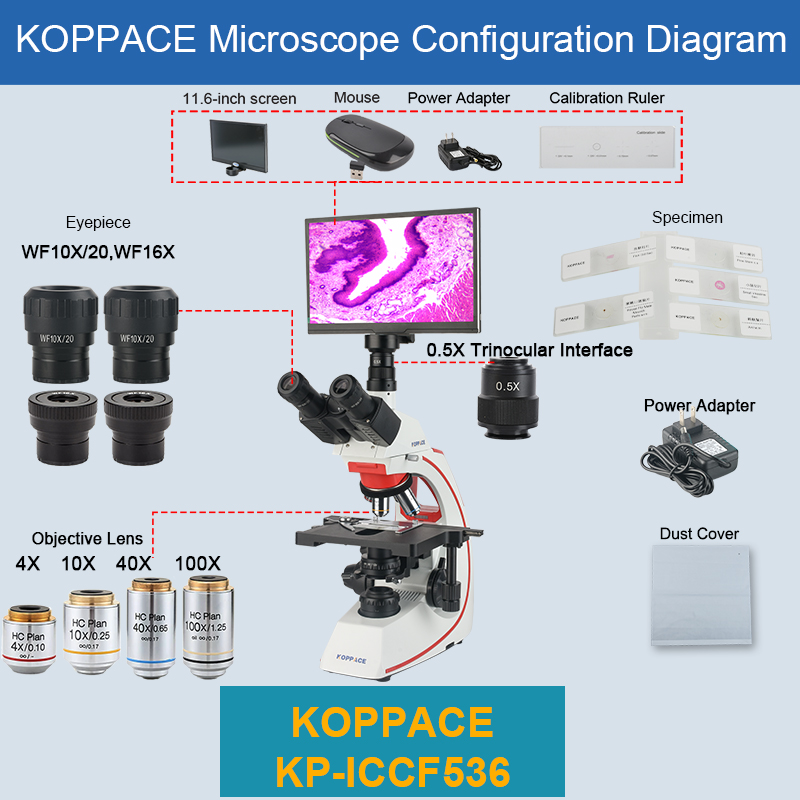

| Packing List | 1、Eyepiece WF10X/20 *2 2、Eyepiece WF16X *2 3、Objective lens HC PLAN 4X *1 4、Objective lens HC PLAN 10X *1 5、Objective lens HC PLAN 40X *1 6、Objective lens HC PLAN 100X *1 7、Trinocular Microscope Body *1 8、0.5X Trinocular Interface *1 9、Power adapter *1 10、5 Pieces Specimen *1 11、Dust Cover *1 12、Mouse *1 13、The Camera Power Adapter *1 14、Calibrating Ruler *1 15、11.6-inch all-in-one camera *1 |
| Note: | 1、100X (oil mirror),Because We Can Not Deliver liquid Products With Express Delivery,We Will Remove Immersion Oil. 2. This product features a 11.6-inch integrated display with a camera. 3. This product is an HDMI output device and can only be connected to the display via HDMI for use. 4. This product has two USB outputs, one for connecting a mouse and the other for connecting a USB drive. 5. You can directly measure, save images and Excel data on the display using the mouse. |
**************************************************************************************************************************************************************************************
