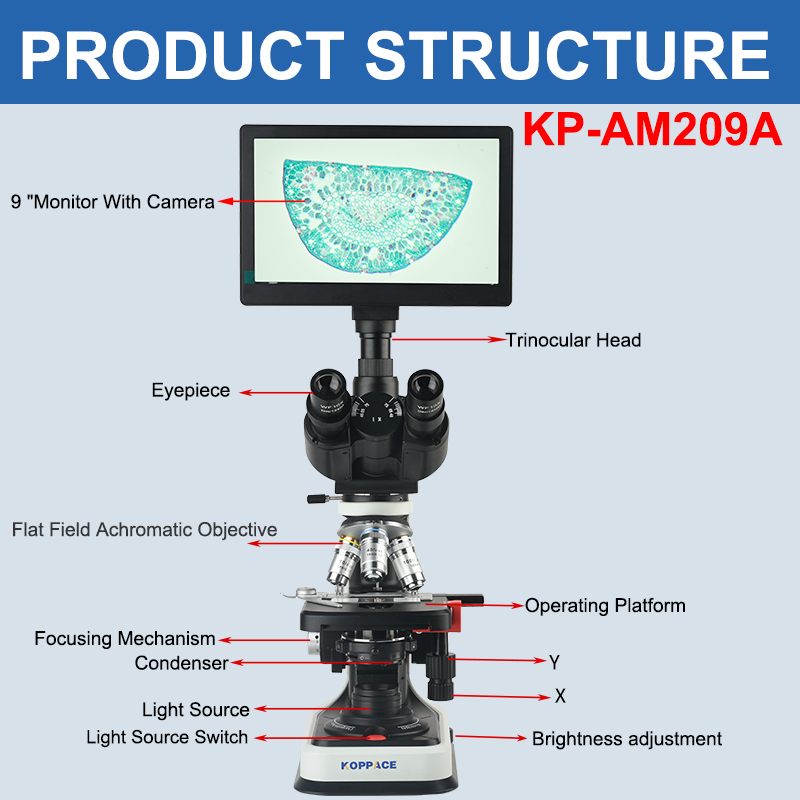

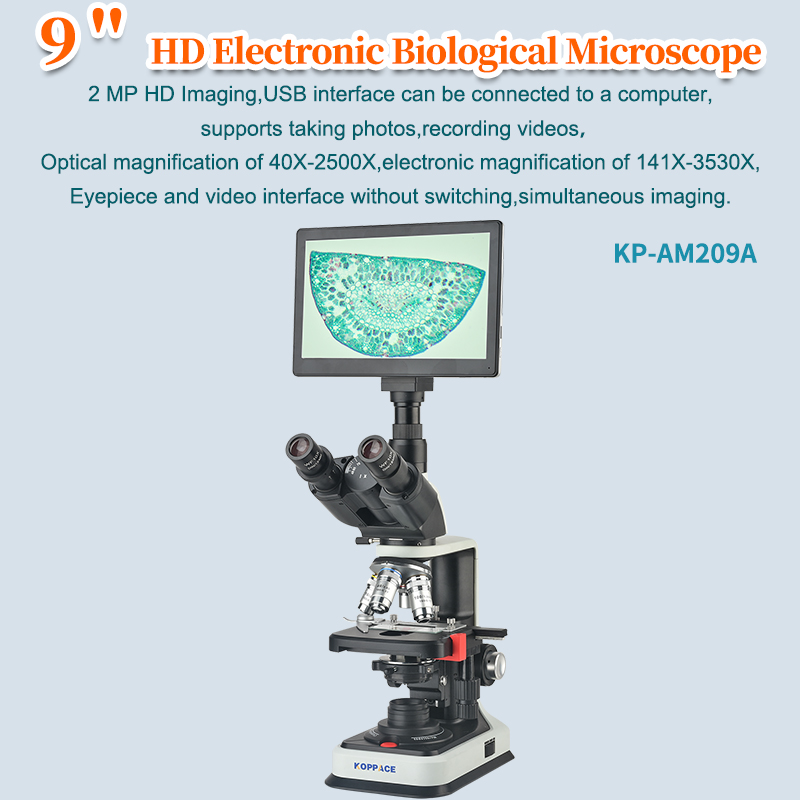

| Model | KP-AM209A |

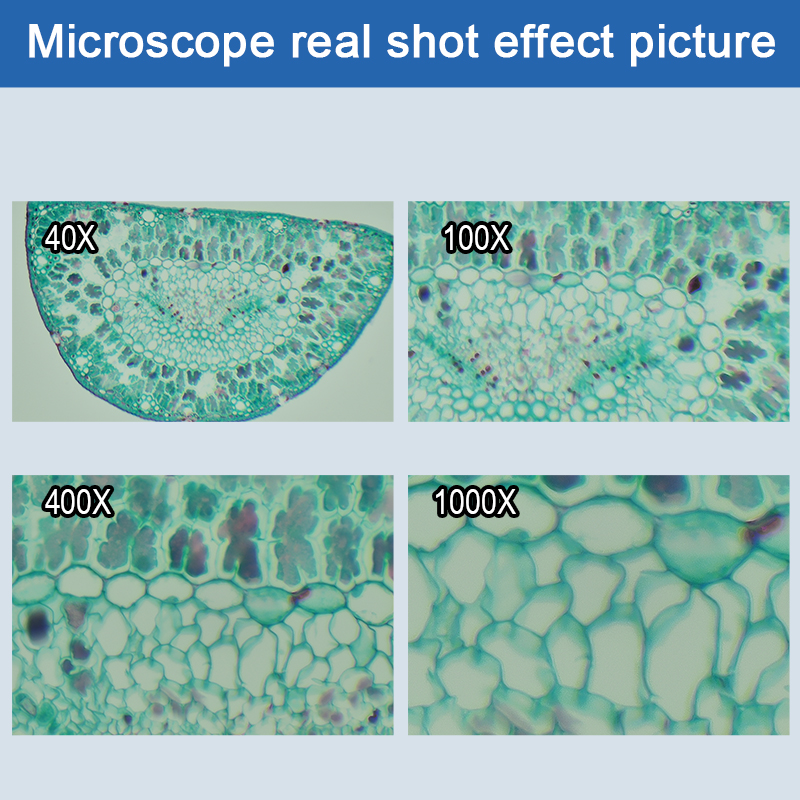

| Optical Magnification | 40X-2500X |
| Electronic Amplification | 142X-3540X |

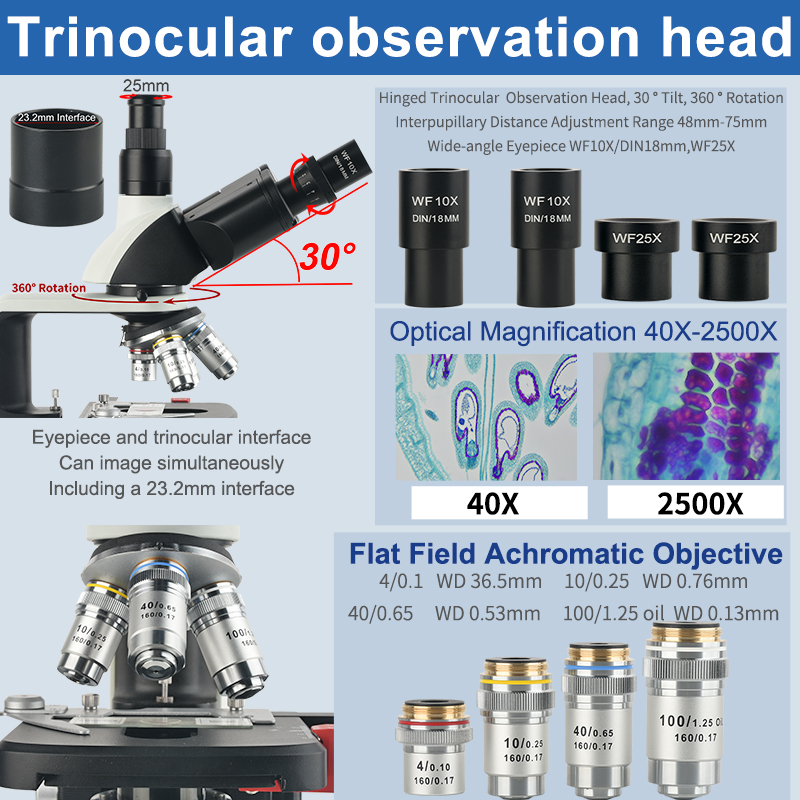

| Observation Tube | Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate,Interpupillary Distance Adjustment Range 48mm-75mm |
| Eyepiece | Wide-angle Eyepiece WF10X/DIN18mm,WF25X/8mm |
| Objective Lens | Flat Field Achromatic Objective 4/0.1 WD 36.5mm 10/0.25 WD 0.76mm 40/0.65 WD 0.53mm 100/1.25 WD 0.13mm (Oil Mirror) |
| Converter | Four Holes Conversion |

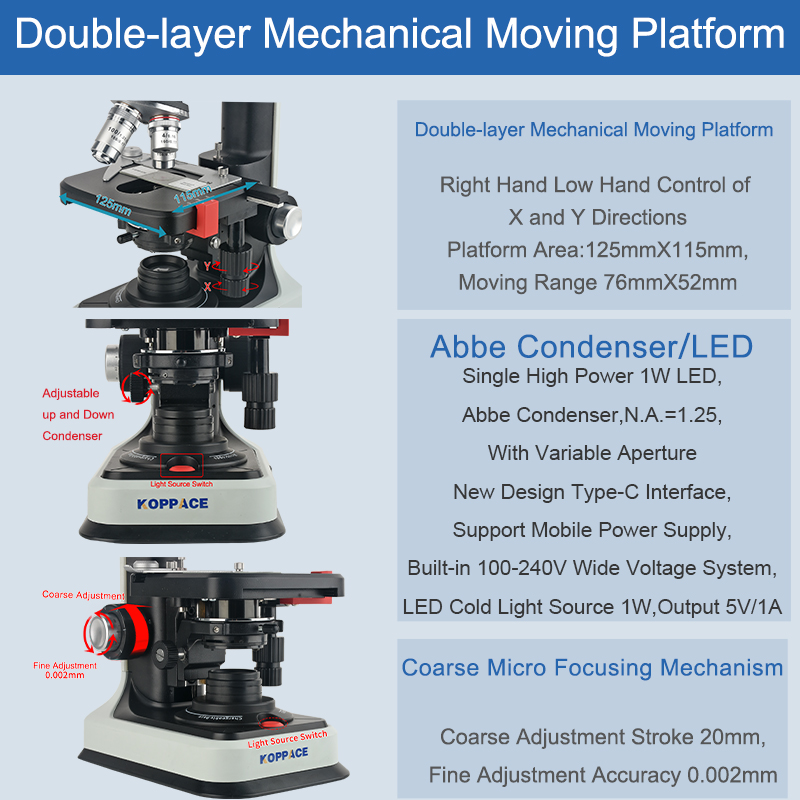

| Operating Platform | Right Hand Low Hand Control of X and Y Directions Platform Area:125mmX115mm,Moving Range 76mmX52mm |
| Coarse Micro Focusing Mechanism | Coarse Adjustment Stroke 20mm,Fine Adjustment Accuracy 0.002mm |
| Condenser | Abbe Condenser,N.A.=1.25,With Variable Aperture |
| Light Source | LED Cold Light Source 1W |
| Power | External Regulated Power Adapter, 100V-240V_AC50/60Hz DC5V/1A |
| Trinocular Interface | 1X Trinocular Interface (Can be Connected to 25mm Camera and 23.2 Electronic Eyepiece) |
| Packaging | Bubble+Carton |
| Pixel | 2 Million Pixels 9 "all-in-one Display |
| Output Method | USB2.0 |
| Sensor | 2M/Sony 291 |
| Sensor Size | 1/2.8" |
| Resolution Frame Rate | HDMI Output Resolution 1920X080 60 Frames,USB Output Resolution 1920X1080 30 Frames |
| Pixel Size | 2.9μmx2.9μm |
| Exposure Time | 0-33MS |
| Exposure | Auto/Manual |
| White Balance | Automatic White Balance/one-Button White Balance |
| Image Adjustment | Contrast,Saturation,Gamma,Noise Reduction,Sharpness,RGB,Color Temperature |

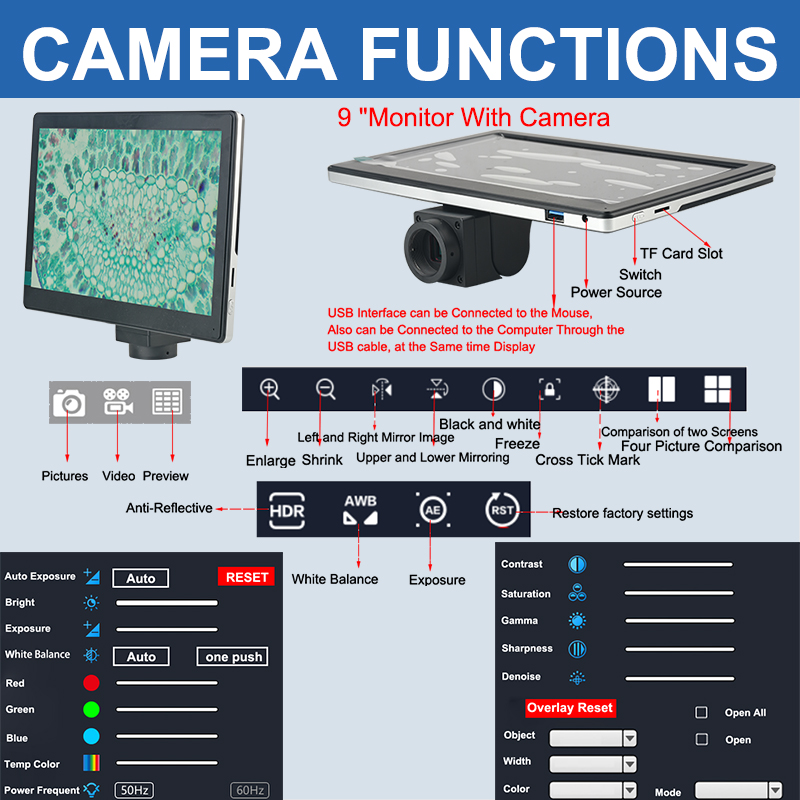

| Camera Features | Photo,Video,Preview,Zoom in,Zoom Out,Mirror,Black and White,Freeze, Cross Tick Mark |
| Image Comparison | Supports two Pictures and Four Pictures Comparison |
| Shoot Mode | Images and Videos |
| Measurement Function | Supports Drawing Points,Lines,Parallel Lines,Vertical Lines,Polygons,Angle Measurement,Drawing Circles |

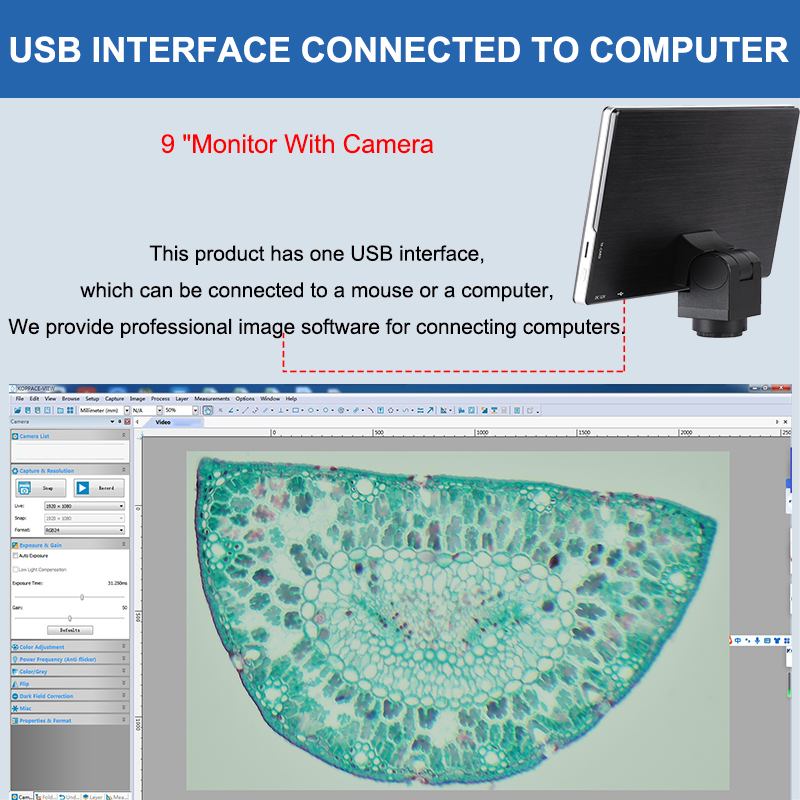

| USB Function | This Product Mainly Through the 9 inch Screen Display, USB Interface Can be Connected to the Mouse,Also can be Connected to the Computer Through the USB Cable,Connected to the Computer we Provide Professional Image Software. |

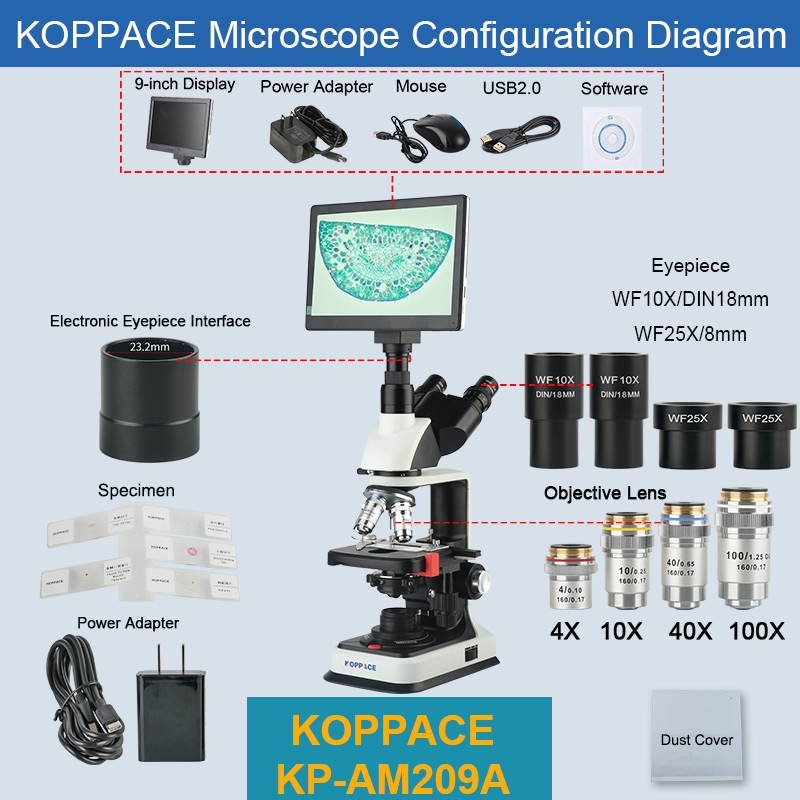

| Packing List | 1、Eyepiece WF10X/DIN18mm *2 2、Eyepiece WF25X *2 3、Objective Lens 4X *1 4、Objective Lens 10X *1 5、Objective Lens 40X *1 6、Objective Lens 100X *1 7、Trinocular Microscope Body *1 8、Electronic Eyepiece Interface *1 9、Power Adapter *1 10、5 Pieces Specimen *1 11、Dust Cover *1 12、2MP 9 "all-in-one Display *1 13、USB2.0 Line *1 14、Software *1 |
| Note | 1、100X (oil mirror),Because We Can Not Deliver liquid Products With Express Delivery,We Will Remove Immersion Oil. 2、This Product Mainly Through the 9 inch Screen Display, USB Interface Can be Connected to the Mouse,Also can be Connected to the Computer Through the USB Cable,Connected to the Computer we Provide Professional Image Software. |
**************************************************************************************************************************************************************************************
