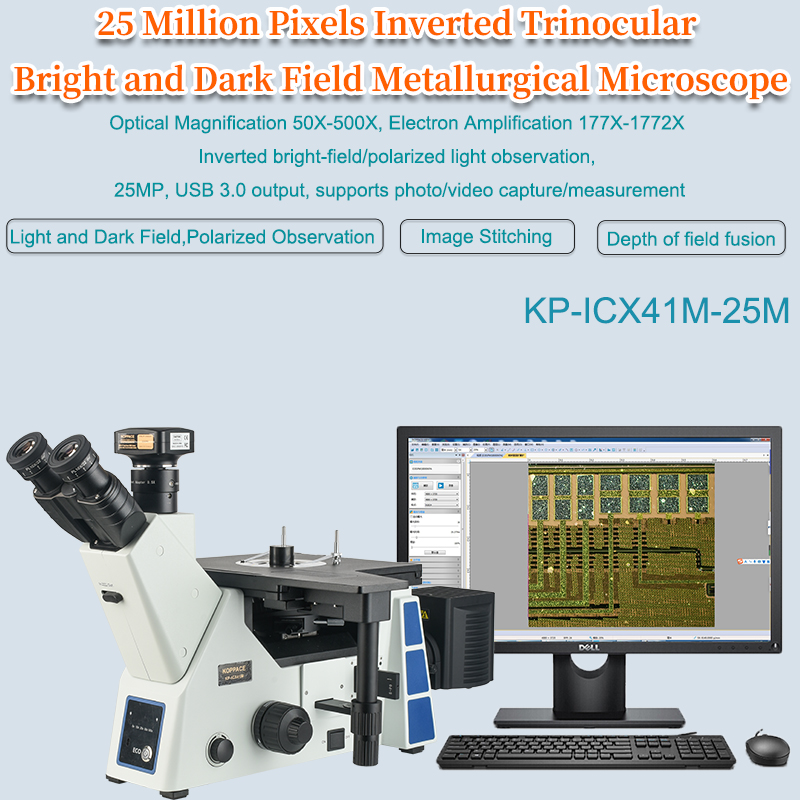

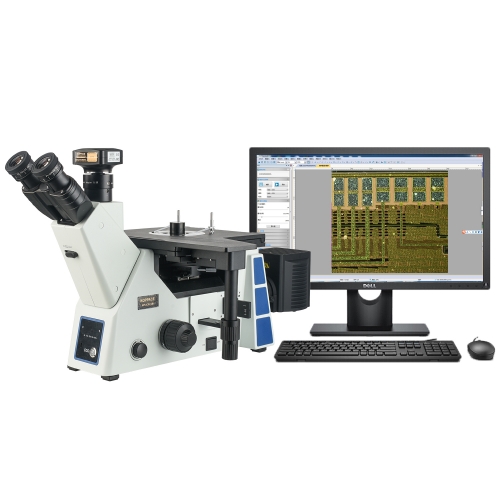

| Model | KP-ICX41M-25M |
| Optical Magnification | 50X,100X,200X,500X |
| Electronic Amplification | 177X-1772X |
| Optical System | Infinity Chromatic Aberration Correction Optical System |
| Eyepiece | High Eye Point large Field of View flat Field Eyepiece PL10X22mm |

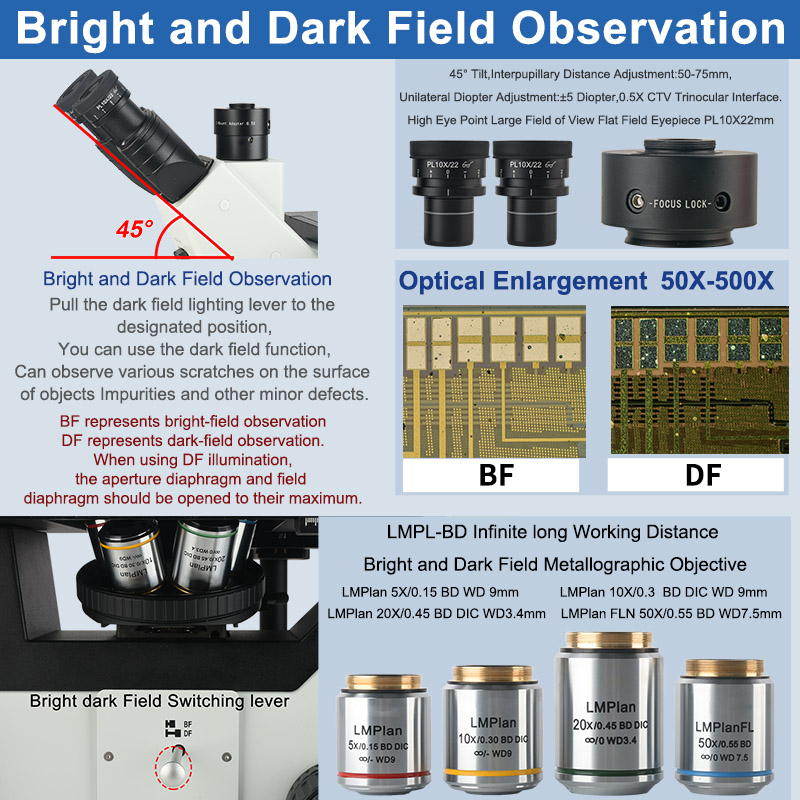

| Objective Lens | LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective LMPlan 5X/0.15 BD WD 9mm LMPlan 10X/0.3 BD DIC WD 9mm LMPlan 20X/0.45 BD DIC WD 3.4mm LMPlan FLN 50X/0.55 BD WD 7.5mm |
| Observation Tube | Three-eye Viewing Tube, 45° Tilt,Hinge Group can be 360° Rotation,Fixed Eyepiece Tube,Pupil Distance Adjustment Range of 50-75mm |
| Converter | Bright and Dark Field Five-Hole Converter With DIC Slot |

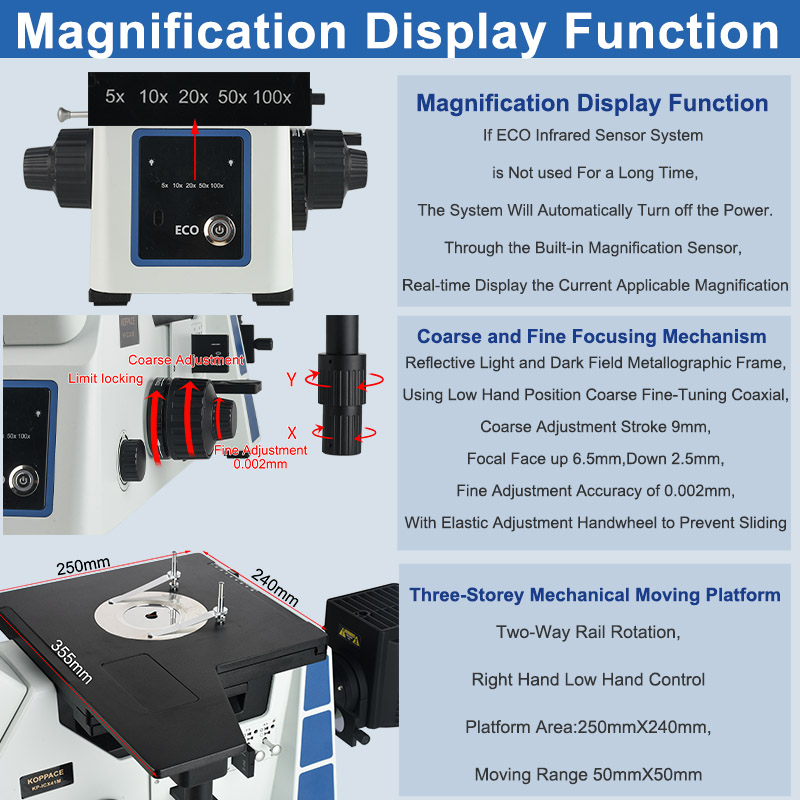

| Coarse and Fine Focusing Mechanism | Reflection Light and Dark Field Metallographic Frame,Using Low Hand Position Coaxial Coarse Fine Adjustment,Coarse Adjustment Stroke 9mm, The Focus Facing up 6.5mm,Down 2.5mm,Fine Adjustment Precision 0.002mm,With an Elastic Adjustment Handwheel to Prevent Sliding |
| Operating Platform | Three-layer Mechanical Moving Platform,Platform Size:240 (W) X 250 (L),Moving Range of 50X50mm,Two-Way Wire Rail Drive,Right Hand Low Hand Control |
| Lighting System | Light and Shade Field Reflector With Variable Field of View Aperture,Aperture Aperture,the Center is Adjustable;With Light and Shade Field Switching Device,With Filter Slot and Polarizing Device slot;12V100W Halogen Light Box (Reserved Center),Light Source Brightness Continuously Adjustable,With Light Source Brightness Indicator Bar,With Infrared Induction Function;Adopt External Wide Voltage Transformer,Input 100-240v,Output 15V13.4A |

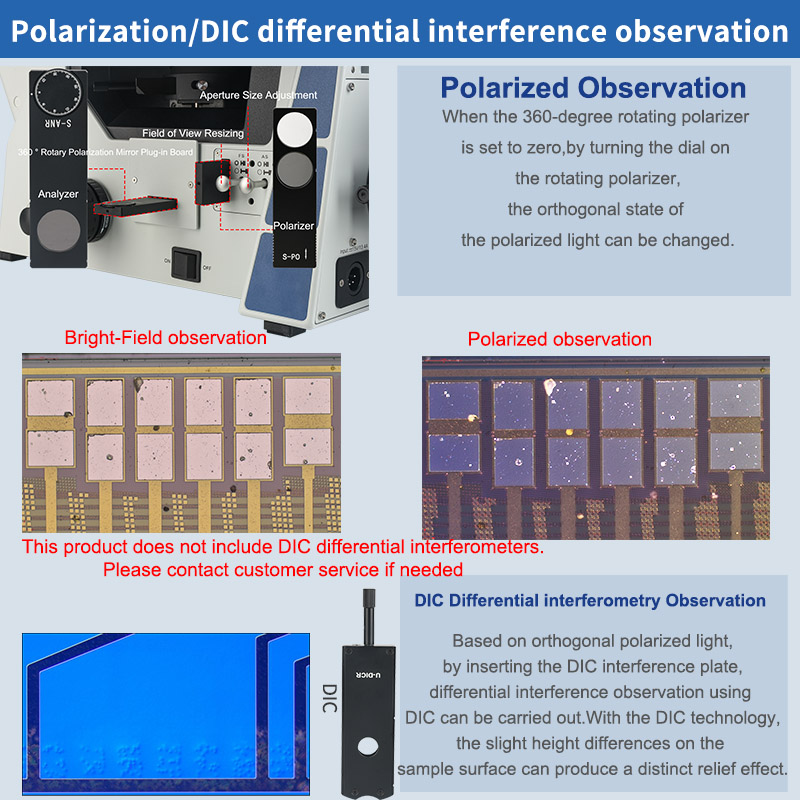

| Polarizer | Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
| Trinocular Interface | 0.5X C-mount Interface,Adjustable Focus |
| Pixel | 25 Million Pixels |
| Output Method | USB3.0 |
| Sensor | 25M/SONY IMX511(C) |
| Sensor Size | 1/2.3 “ (5.519x5.519) |
| Pixel Size | 1.12μmx1.12μm |
| Resolution Frame Rate | 12@4928x4928，46@2464x2464，100@1648x1648 |
| Exposure Time | 0.013ms~15s |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
| Operating System | Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux |
| File Save | Can Set File Name,Save Pictures With Time Format,Save Path Selection |
| Image Adjustment | Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
| Shooting Mode | Images and Videos |

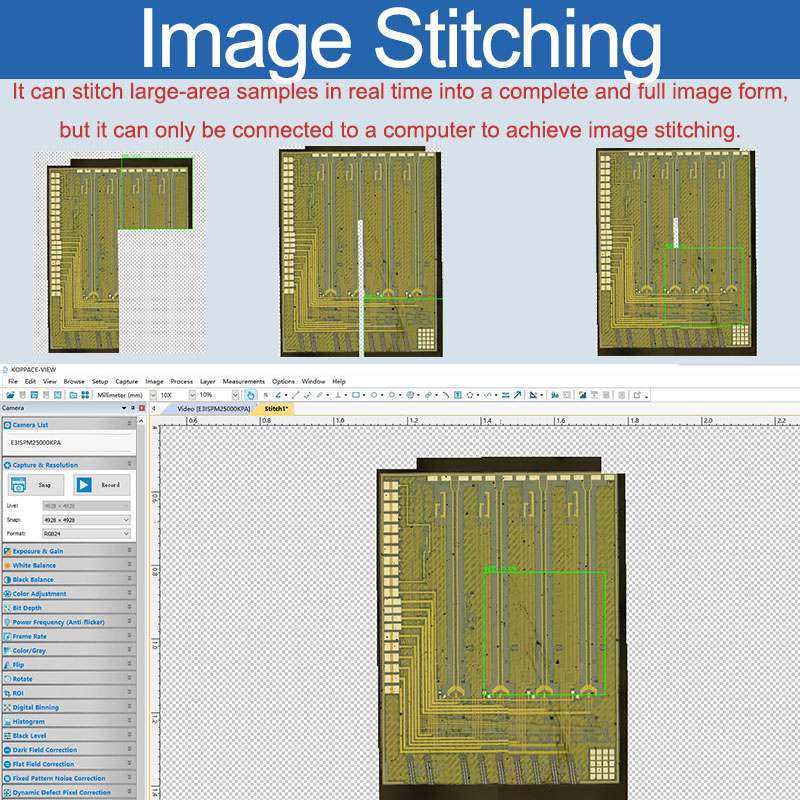

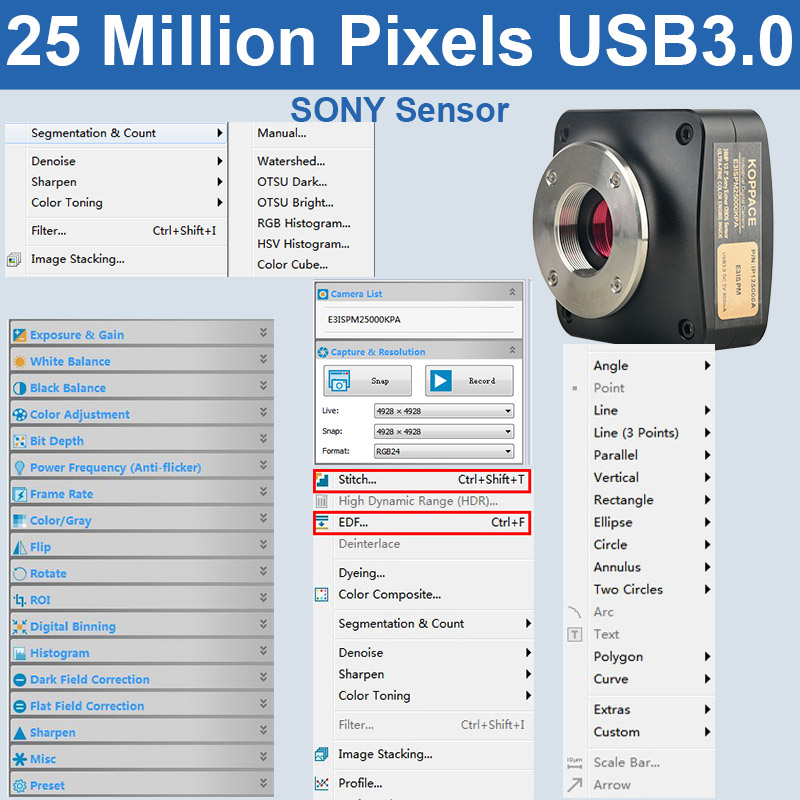

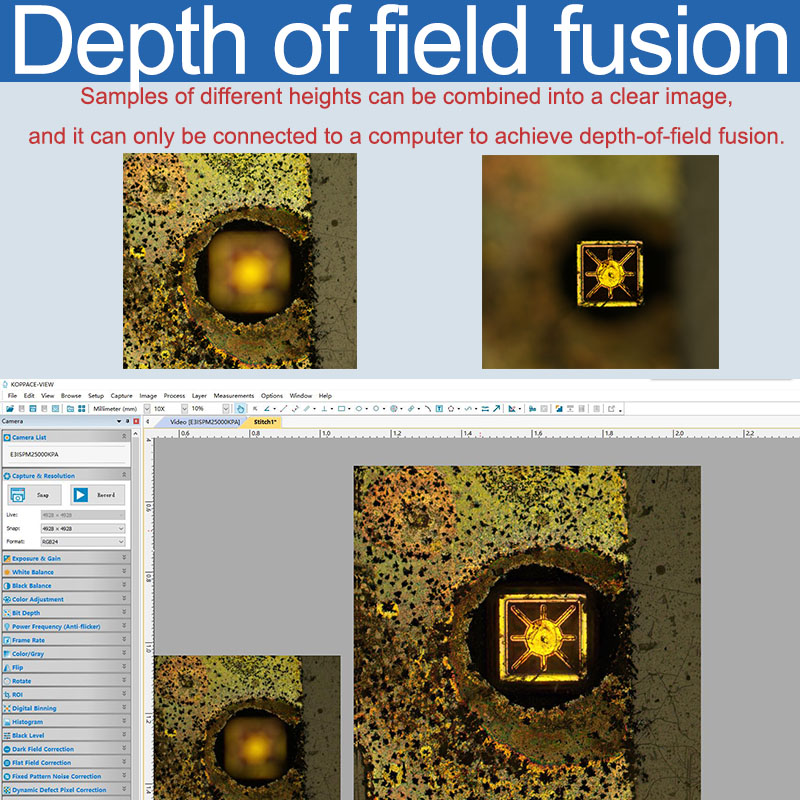

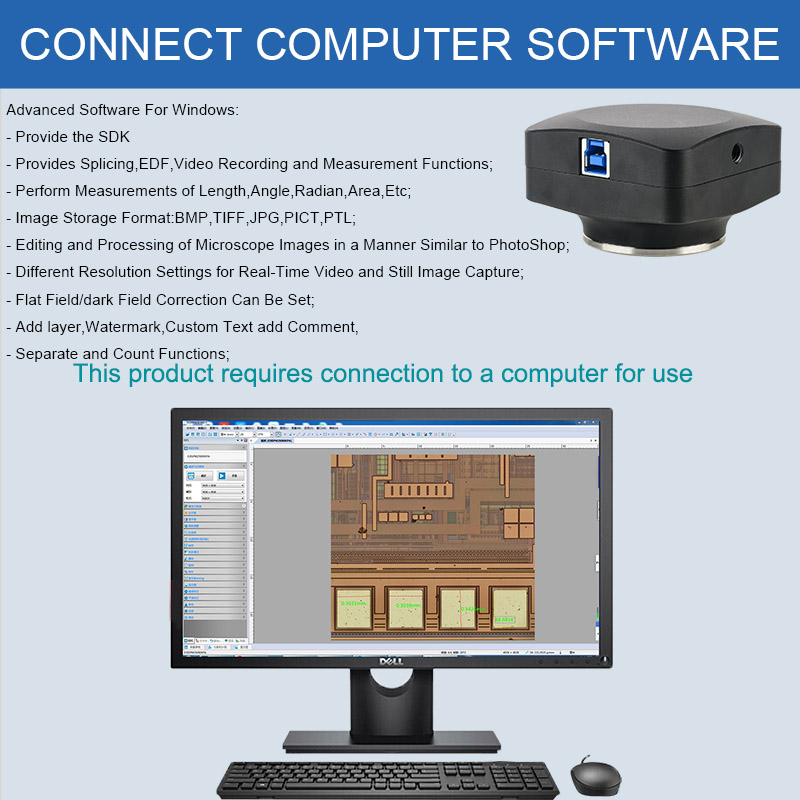

| Camera Function | Advanced software for Windows: - SDK Available - Provides Stitching,EDF,Video Recording and Measurement Functions - Measurement of Length,Angle,Radian,area,etc. - Save Still Images in BMP,TIFF,JPG,PICT,PTL or other Formats - Edit and Process microscope images in a manner similar to PhotoShop |

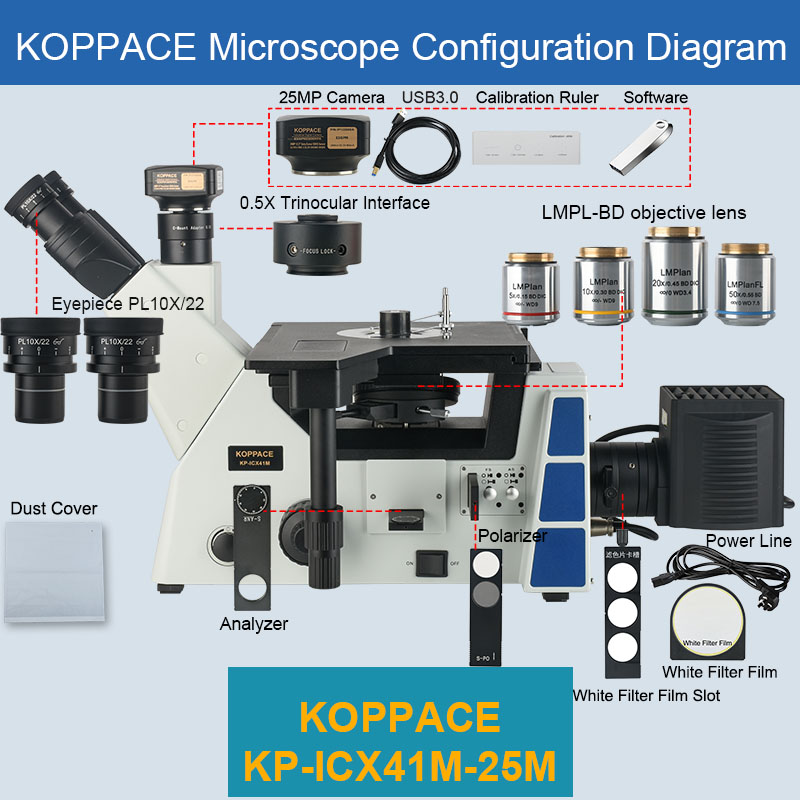

| Packing List | 1、A pair of Eyepieces PL10X/22mm 2、0.5X Trinocular Interface *1 3、Objective Lens LMPlan 5X/0.15 BD WD 9mm *1 4、Objective Lens LMPlan 10X/0.3 BD DIC WD 9mm *1 5、Objective Lens LMPlan 20X/0.45 BD DIC WD3.4mm *1 6、Objective Lens LMPlan FLN 50X/0.55 BD WD7.5mm *1 7、Microscope Body *1 8、Light Box Power Cord *1 9、Analyzer *1 10、Polarizer *1 11、Platform *1 12、Filter Film *1 13、Dust Cover *1 14、25MP Camera *1 15、1.8m USB Cable *1 16、CD Software *1 17、Calibrating Ruler *1 |

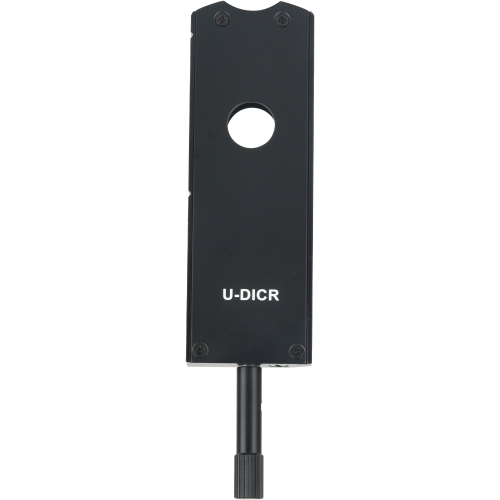

| Note | 1、This Product Does Not Contain Computer; 2、This Product is Through the USB3.0 Interface Connected to the Computer for Use,We Provide Free Professional Image Software; 3、This Product Does Not Contain Interference Plates;If Necessary,Please Purchase it Separately; |
****************************************************************************************************************************************************************************************************************************************************
