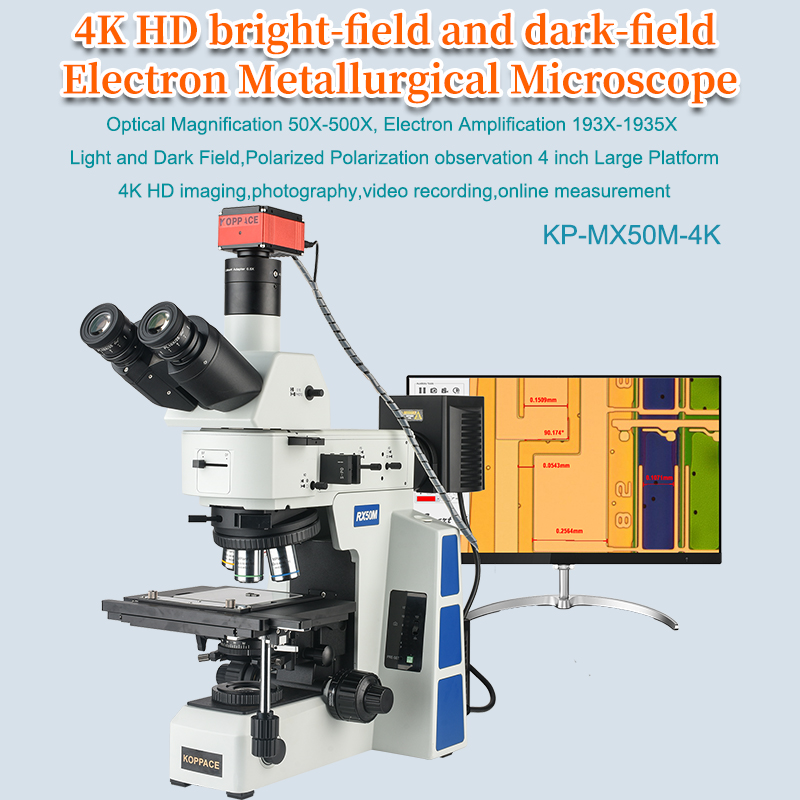

| Model | KP-RX50M-4K |
| Electronic Amplification | 193X-1935X |
| Optical Magnification | 50X-500X |
| Optical System | Infinite Achromatic Correction Optical Aystem (Semi Apochromatic) |
| Eyepiece | High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm |

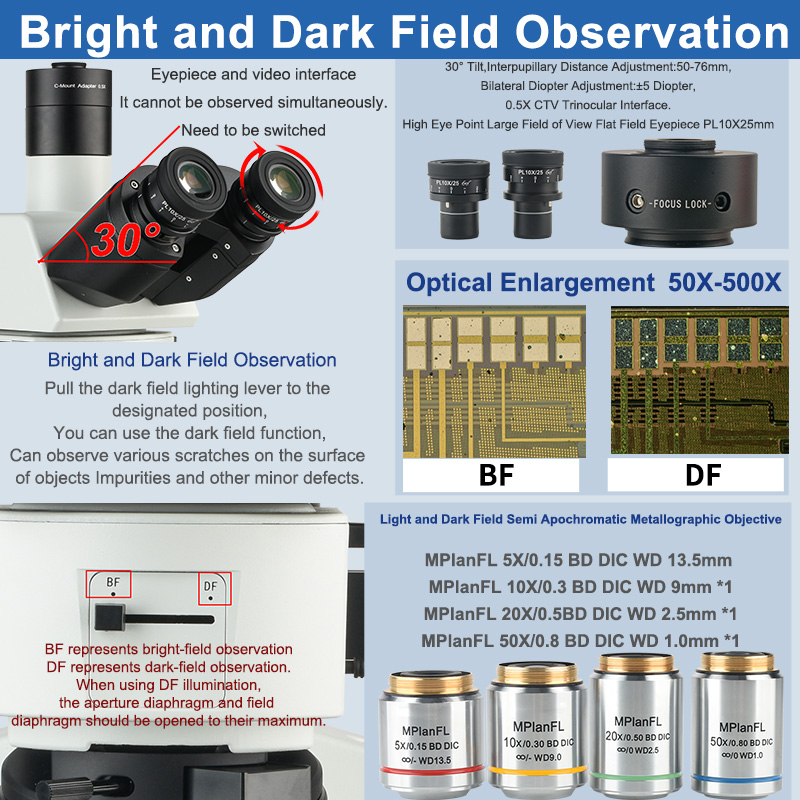

| Objective Lens | Bright and Dark Field Semi Vanishing Achromatic Objective MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80 |
| Observation Tube | 30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm |
| Objective Lens Converter | Bright and Dark Field Five-Hole Converter With DIC Slot |

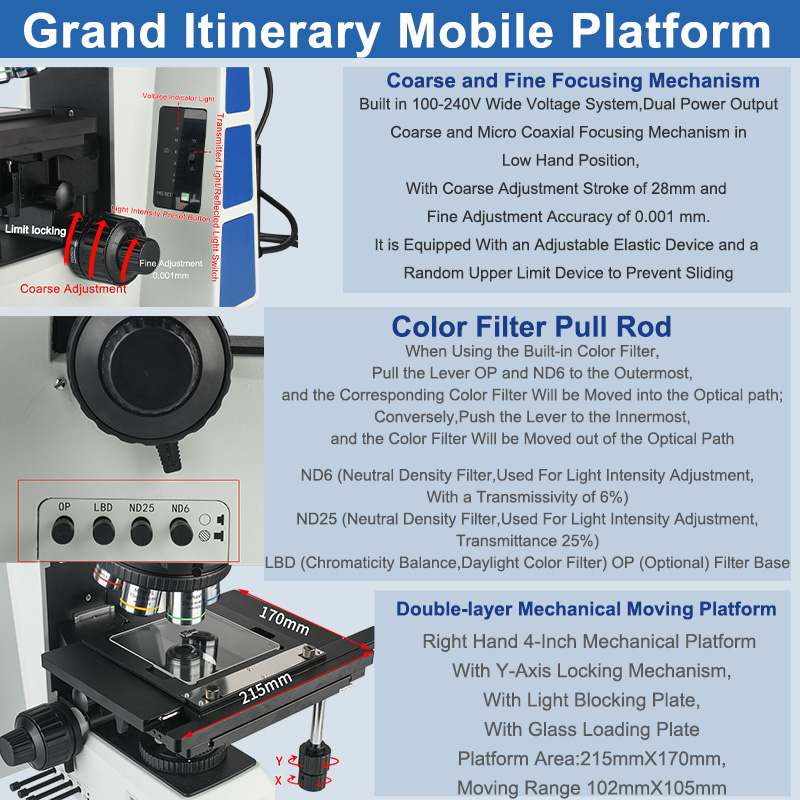

| Focusing System | Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm.It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding. |
| Operating Platform | Right-hand 4-Inch Mechanical Platform,Stroke 102mm×105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate |
| Lighting System | Built-in 100-240V Wide Voltage System,Dual Power Output,Using Digital Dimming; With Light Intensity Setting and Reset Function,Reflection,Transmission Light Switch; Built-in Transmission Filter LBD, ND6, ND25 Light and Dark Field Reflector, With Variable Aperture Aperture,Field of View Aperture,Center Adjustable; With Light and Dark Field Lighting Switching Device;With a Color Filter Slot and a Polarizing Device Slot; Transreflection Lighting System,12V100W Halogen lamp Room; |
| Condenser | Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable |

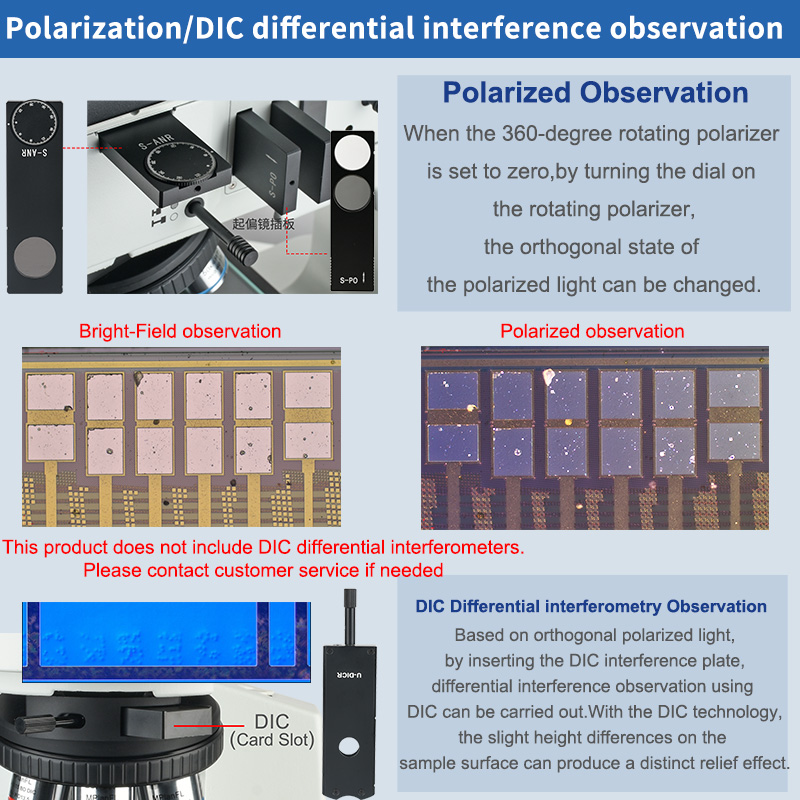

| Polarizer | Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |

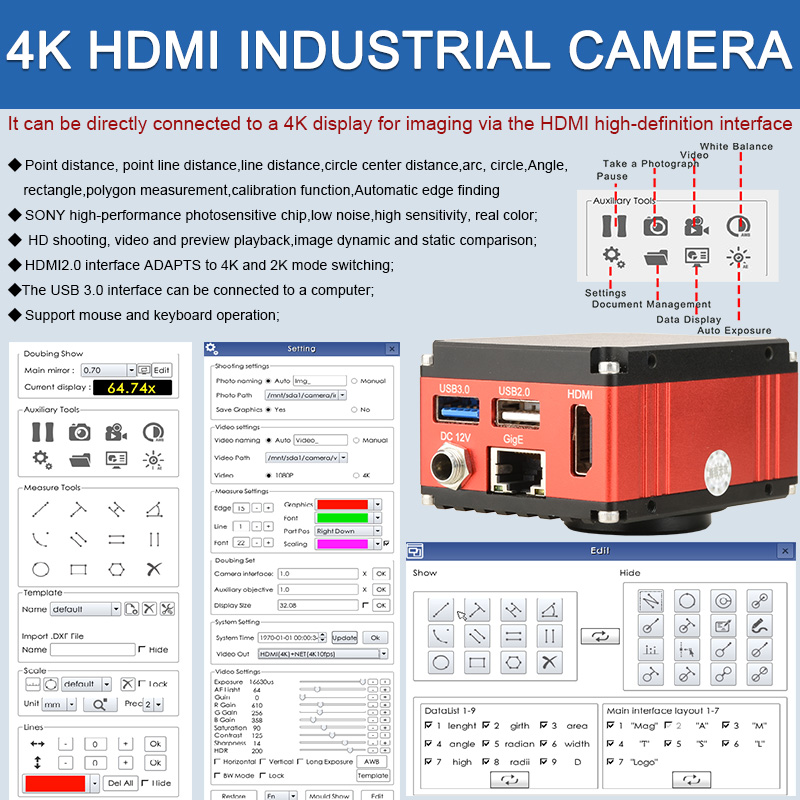

| Trinocular Interface | 0.5X C-mount Interface |
| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、GigE、USB3.0 |
| Sensor | 8.3M/Sony 1/1.8＂CMOS |
| Sensor Size | 1/1.8" CMOS |
| Resolution Frame Rate | 3840X2160,(Photo can be Manually and Automatically Named file Name) |
| Video Resolution | 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
| Frame Rate | 60 Frame |
| Pixel Size | 2.0μmx2.0μm |
| Color Adjustment | R、G、B |
| Exposure | Auto/Manual |
| White Balance | Auto/Manual |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode | U Disk Storage,Can take Photos,Video,Measurement |

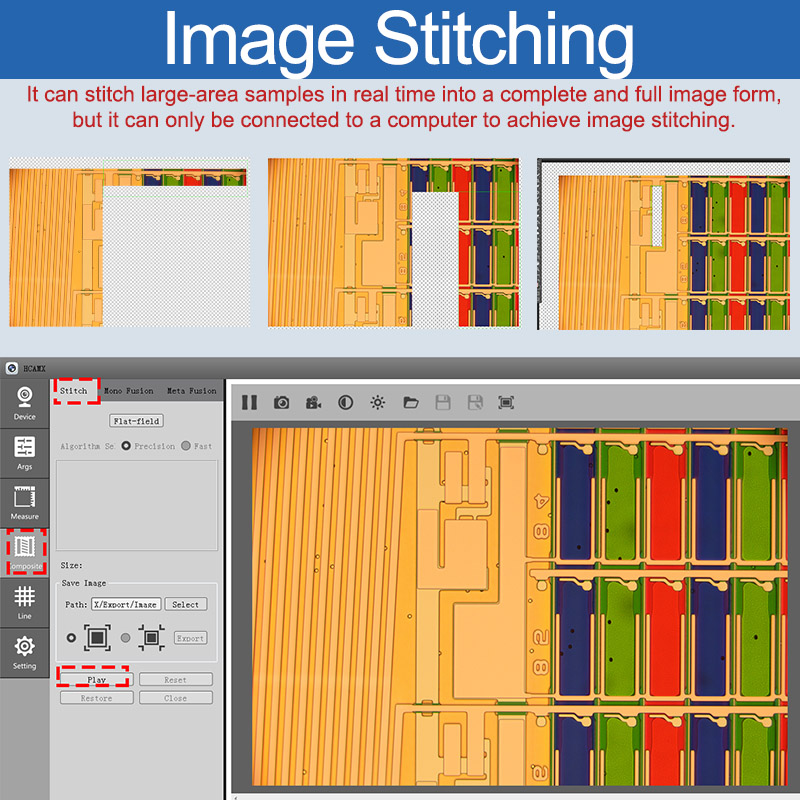

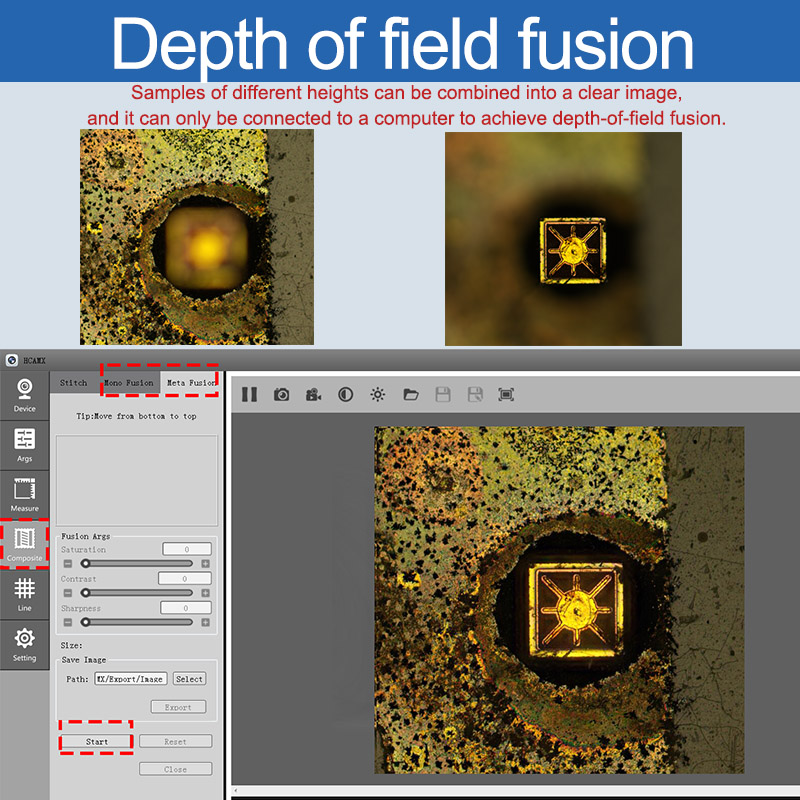

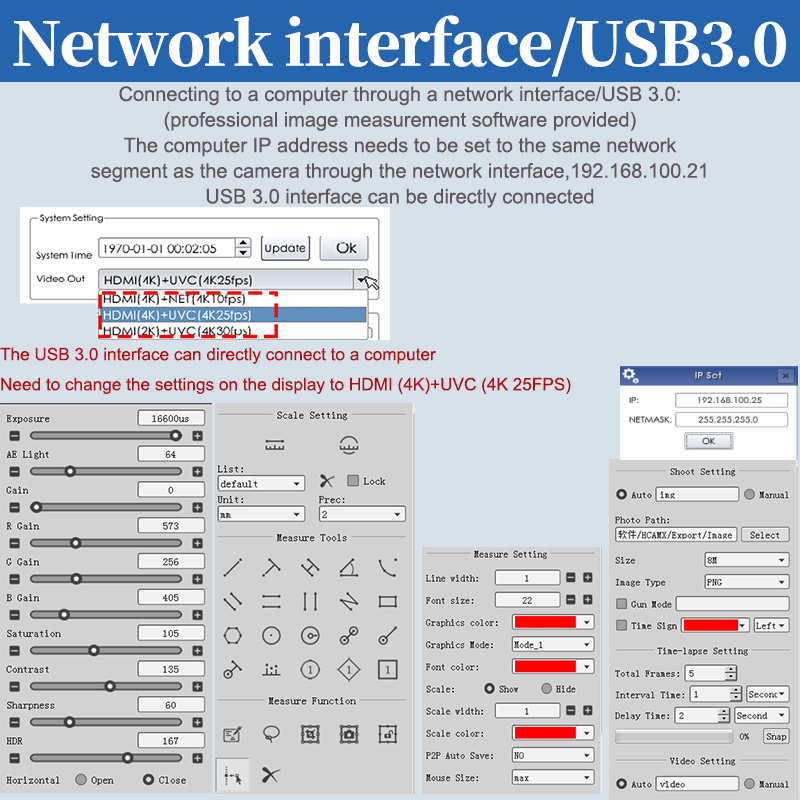

| GigE/USB3.0 | By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable |

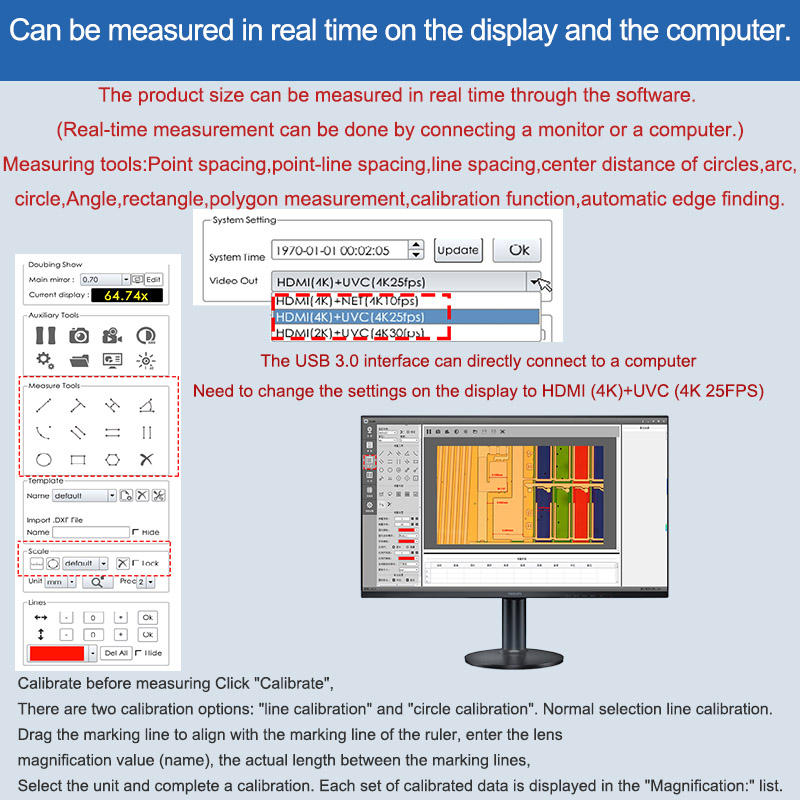

| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |

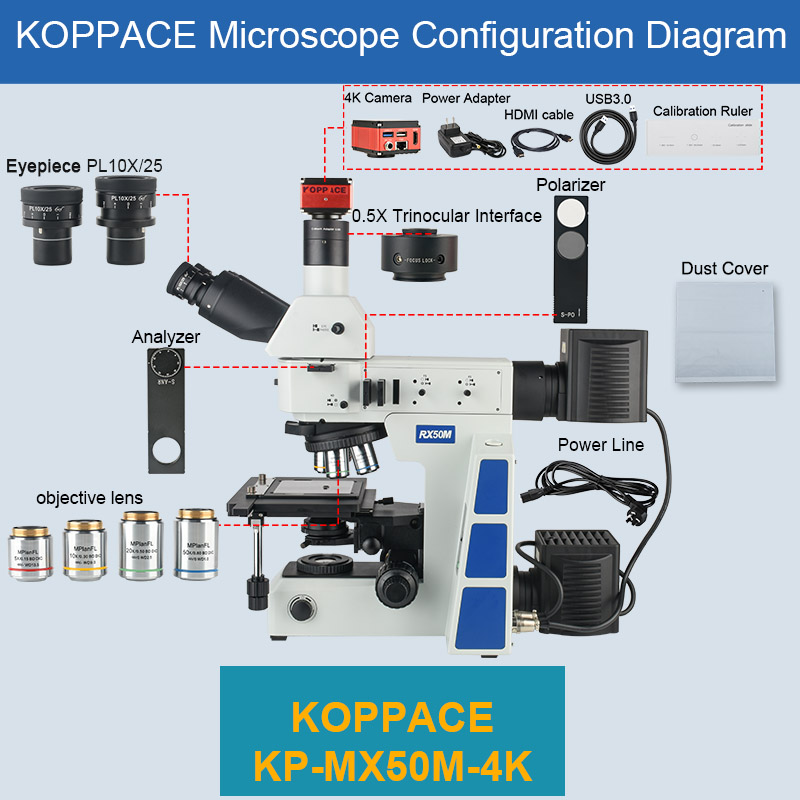

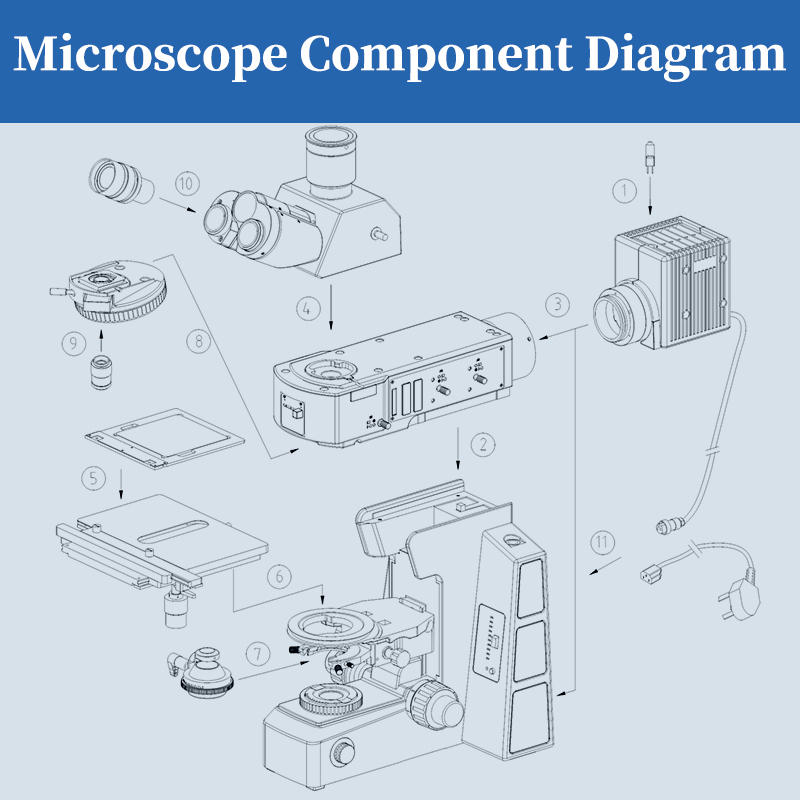

| Packing List | 1、A pair of Eyepieces PL10X/25mm 2、0.5X Trinocular Interface *1 3、Objective Lens MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 *1 4、Objective Lens MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 *1 5、Objective Lens MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 *1 6、Objective Lens MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80 *1 7、Microscope Body *1 8、Light Box Power Cord *1 9、Analyzer *1 10、Polarizer *1 11、4-inch Platform *1 12、Dust Cover *1 13、4K Camera *1 14、HDMI Line *1 15、The Camera Power Adapter *1 16、Calibrating Ruler *1 17、USB 3.0 Line *1 |
| Note | 1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. Photography,video recording,and measurement can be achieved on both the monitor and computer. 4. This product does not contain a monitor. 5. This Product Does Not Contain Interference Plates;If Necessary,Please Purchase it Separately; |
****************************************************************************************************************************************************************************************************************************************************
