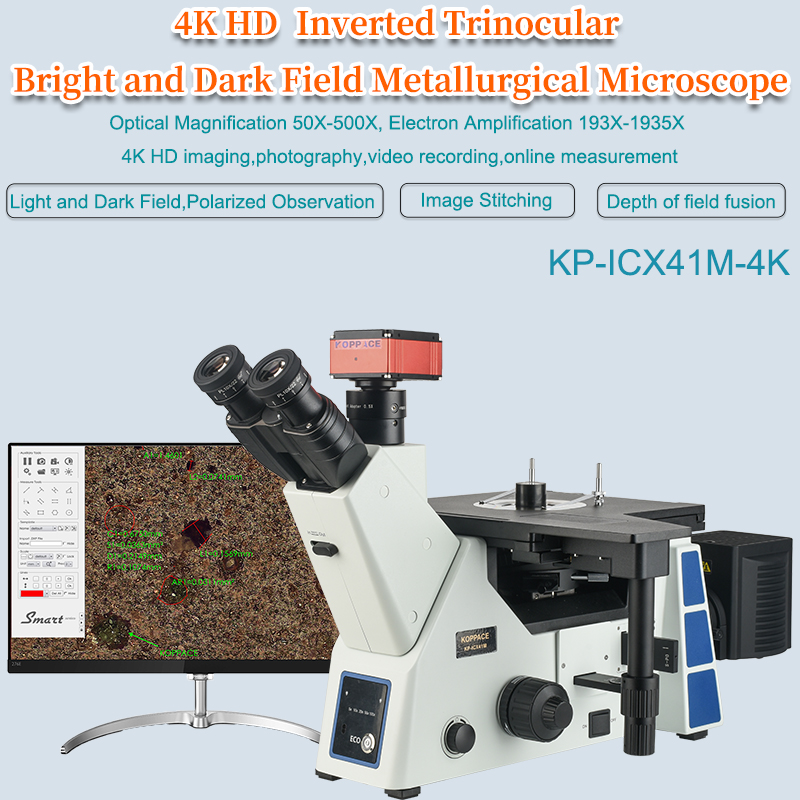

| Model | KP-ICX41M-4K |
| Optical Magnification | 50X,100X,200X,500X |
| Electronic Amplification | 193X-1935X |
| Optical System | Infinity Chromatic Aberration Correction Optical System |
| Eyepiece | High Eye Point Large Field of View Flat Field Eyepiece PL10X22mm |

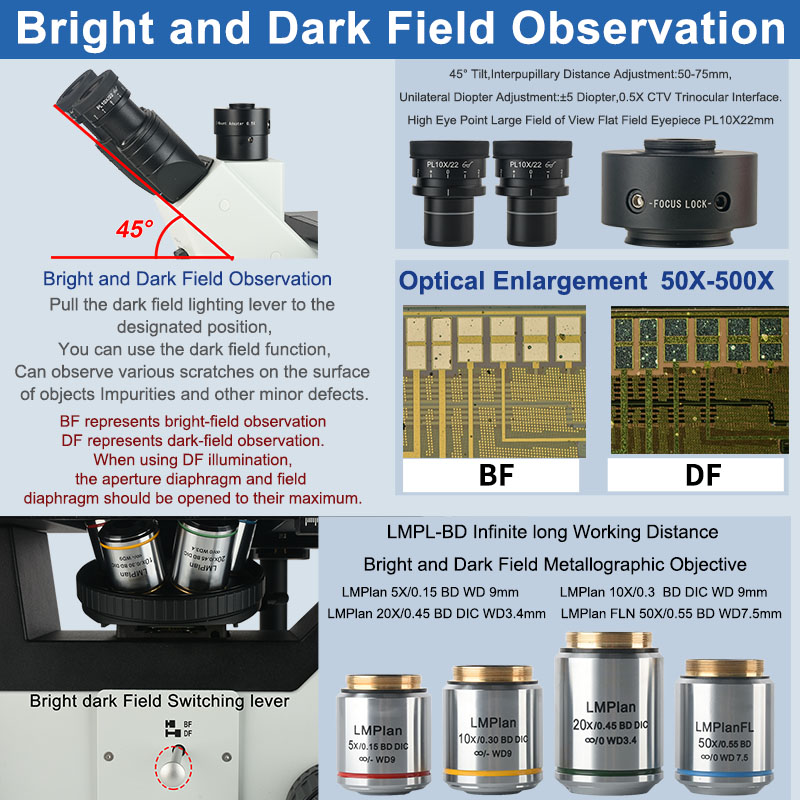

| Objective Lens | LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective LMPlan 5X/0.15 BD WD 9mm LMPlan 10X/0.3 BD DIC WD 9mm LMPlan 20X/0.45 BD DIC WD 3.4mm LMPlan FLN 50X/0.55 BD WD 7.5mm |
| Observation Tube | Three-eye Viewing Tube, 45° Tilt,Hinge Group can be 360° Rotation,Fixed Eyepiece Tube,Pupil Distance Adjustment Range of 50-75mm |
| Converter | Bright and Dark Field Five-Hole Converter With DIC Slot |

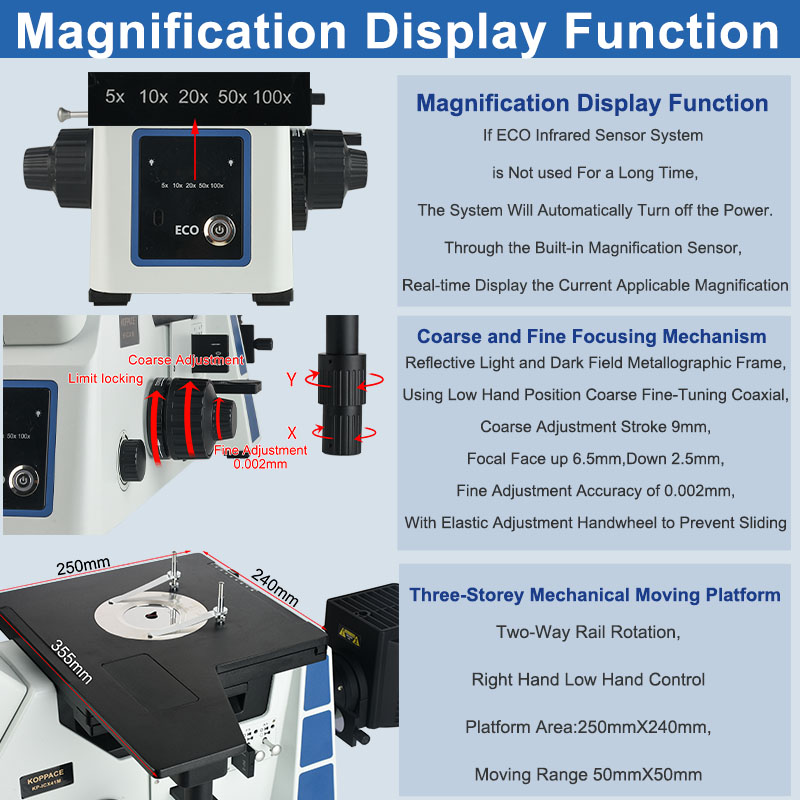

| Coarse and Fine Focusing Mechanism | Reflection Light and Dark Field Metallographic Frame,Using Low Hand Position Coaxial Coarse Fine Adjustment,Coarse Adjustment Stroke 9mm, The Focus Facing up 6.5mm,Down 2.5mm,Fine Adjustment Precision 0.002mm,With an Elastic Adjustment Handwheel to Prevent Sliding |
| Operating Platform | Three-layer Mechanical Moving Platform,Platform Size:240 (W) ×250 (L),Moving Range of 50×50mm,Two-Way Wire Rail Drive,Right Hand Low Hand Control |
| Lighting System | Light and Shade Field Reflector With Variable Field of View Aperture,Aperture Aperture,the Center is Adjustable;With Light and Shade Field Switching Device,With Filter Slot and Polarizing Device slot;12V100W Halogen Light Box (Reserved Center),Light Source Brightness Continuously Adjustable,With Light Source Brightness Indicator Bar,With Infrared Induction Function;Adopt External Wide Voltage Transformer,Input 100-240v,Output 15V13.4A |

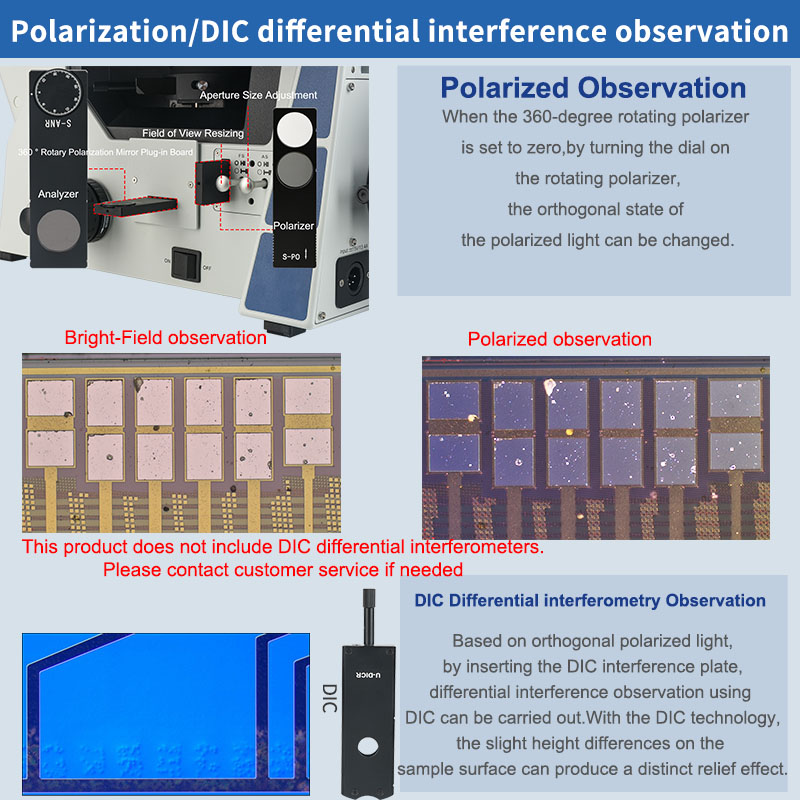

| Polarizer | Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
| Trinocular Interface | 0.5X C-mount Interface,Adjustable Focus |

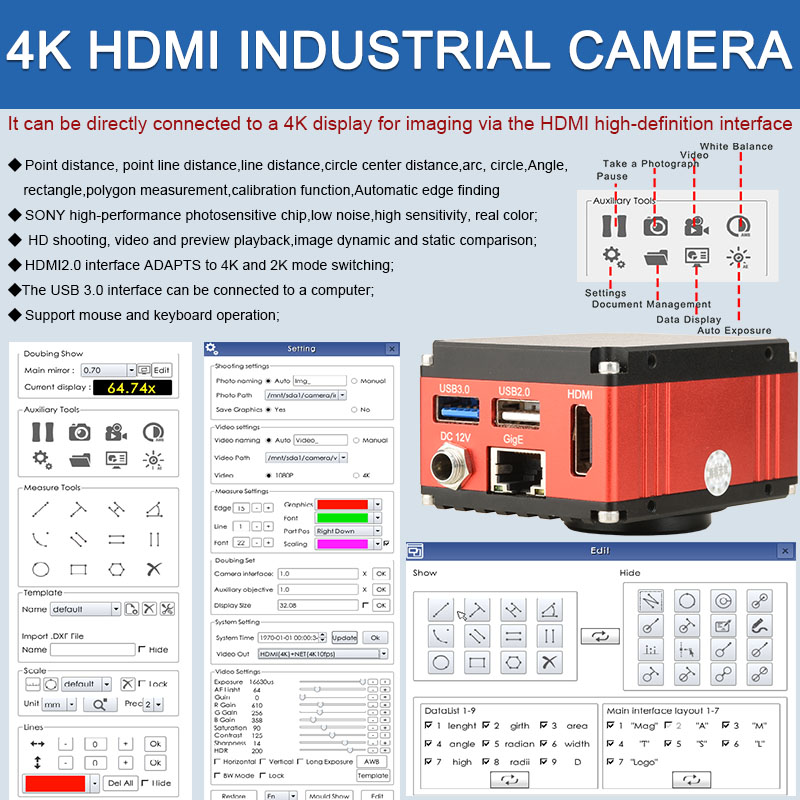

| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、GigE、USB3.0 |
| Sensor | 8.3M/Sony 1/1.8＂CMOS |
| Photographic Resolution | 3840X2160,(Photo can be Manually and Automatically Named file Name) |
| Video Resolution | 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
| Pixel Size | 2.0μmX2.0μm |
| Frame Rate | 60FPS |
| Color Adjustment | R、G、B Independently Adjustable |
| White Balance | Auto/Manual |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |

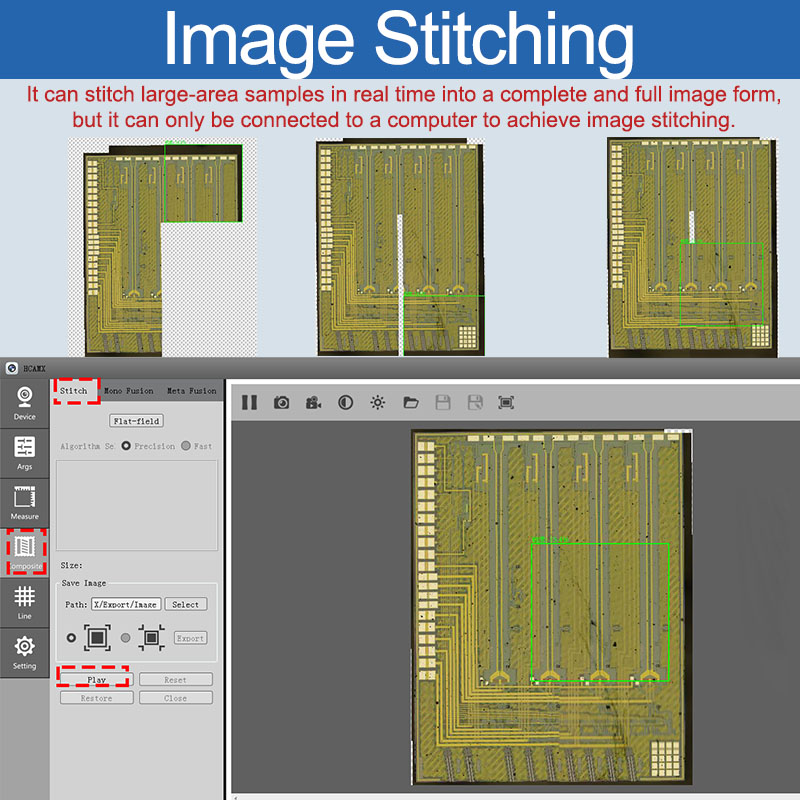

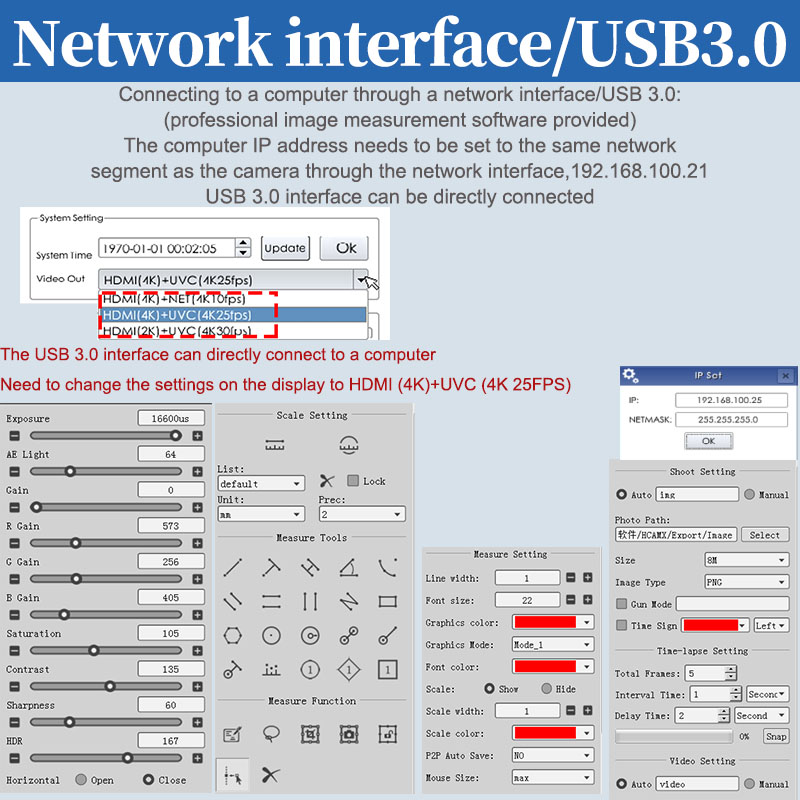

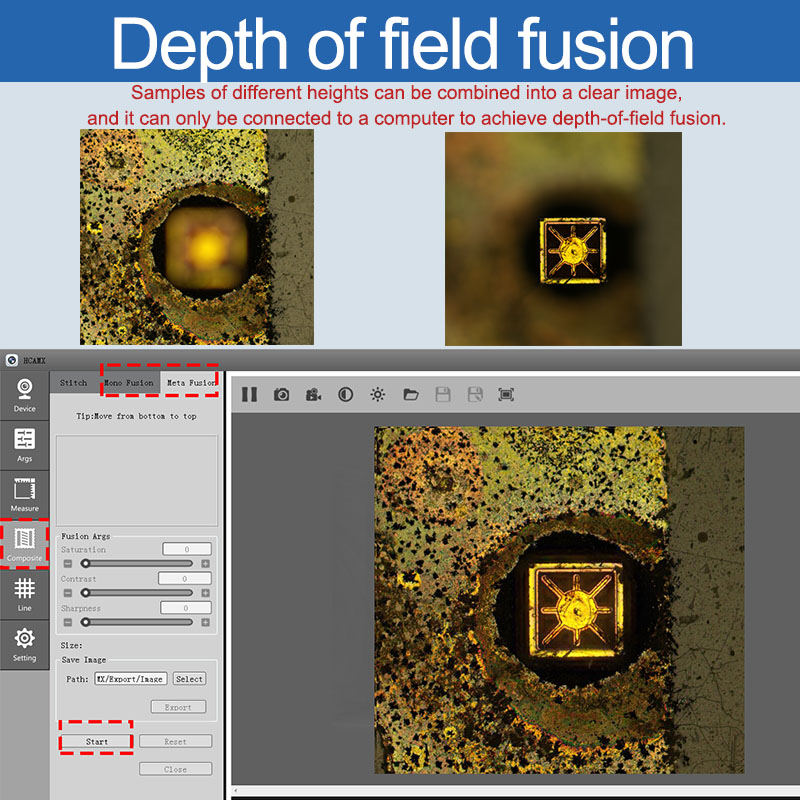

| GigE/USB3.0 | By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable |

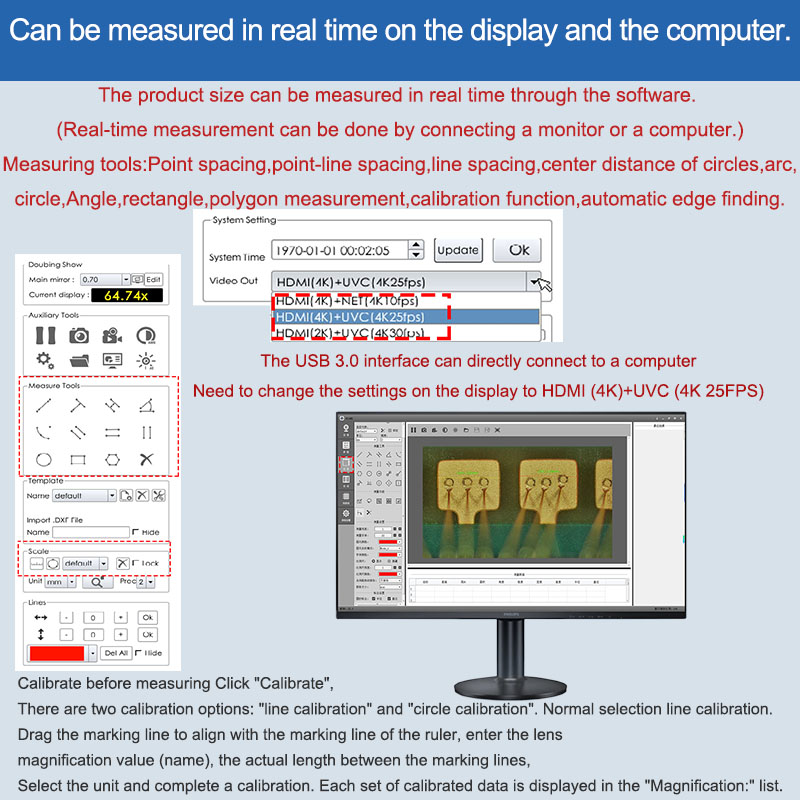

| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |

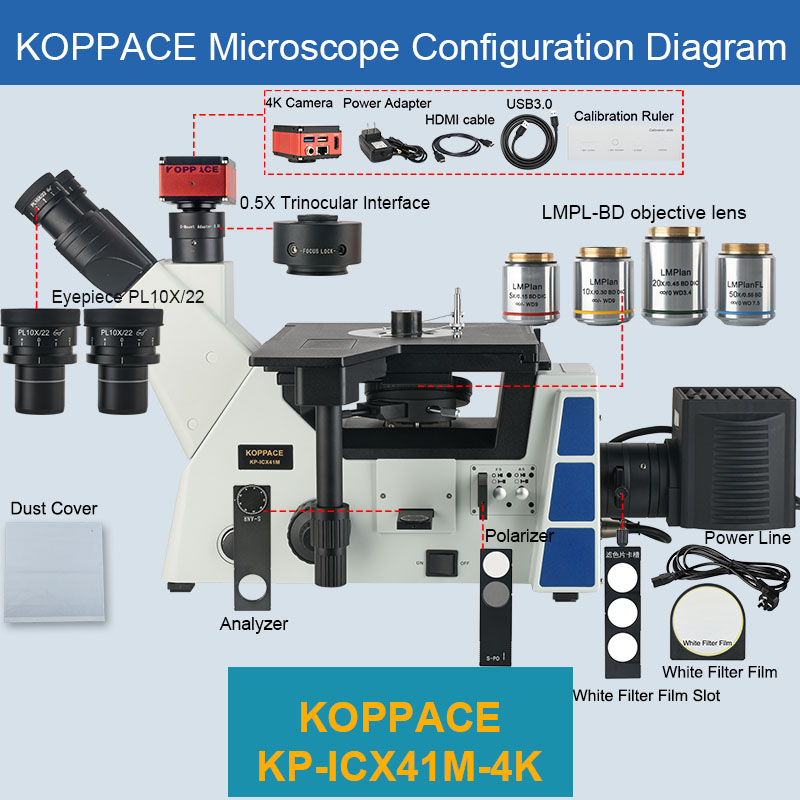

| Packing list | 1、A pair of Eyepieces PL10X/22mm 2、0.5X Trinocular Interface *1 3、Objective Lens LMPlan 5X/0.15 BD WD 9mm *1 4、Objective Lens LMPlan 10X/0.3 BD DIC WD 9mm *1 5、Objective Lens LMPlan 20X/0.45 BD DIC WD3.4mm *1 6、Objective Lens LMPlan FLN 50X/0.55 BD WD7.5mm *1 7、Microscope Body *1 8、Light Box Power Cord *1 9、Analyzer *1 10、Polarizer *1 11、Platform *1 12、Filter Film *1 13、Dust Cover *1 14、4K Camera *1 15、HDMI Line *1 16、The Camera Power Adapter *1 17、Calibrating Ruler *1 18、USB 3.0 Line *1 |
| Note | 1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. Photography,video recording,and measurement can be achieved on both the monitor and computer. 4. This product does not contain a monitor. 5. This Product Does Not Contain Interference Plates;If Necessary,Please Purchase it Separately; |
****************************************************************************************************************************************************************************************************************************************************
